Описание
Размер: Налягане: 1/8 – 0.99 ~ 150 bar. 1/4 – 0.99 ~ 100 bar. 3/8 – 0.99 ~ 75 bar. 1/2 – 0.99 ~ 50 bar. 3/4 – 0.99 ~ 85 bar. 1″ – 0.99 ~ 80 bar.

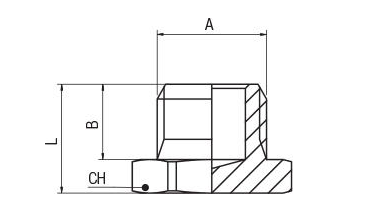

| Код за поръчка: | A | B | L | CH | Наличност: |
|---|---|---|---|---|---|
| 30200001B5 | M5 | 4.5 | 8 | 8 | ✓ |
| 3020001B8 | M6x1 | 4.5 | 8 | 10 | ✓ |
| 30200001NQ | M8x1.25 | 5.4 | 9.4 | 12 | ✓ |
| 30200001JG | M10x1 | 5.4 | 9.4 | 14 | ✓ |
| 3020000102 | 1/8 | 6.5 | 10 | 14 | ✓ |
| 3020000103 | 1/4 | 9 | 13 | 17 | ✓ |
| 30200001RL | M12x1 | 8 | 12 | 16 | ✓ |
| 30200001D5 | M12x1.25 | 9 | 13 | 16 | ✓ |
| 3020000104 | 3/8 | 9.5 | 13.5 | 19 | ✓ |
| 3020000105 | 1/2 | 10 | 14.5 | 24 | ✓ |
| 3020000107 | 3/4 | 11 | 16 | 30 | ✓ |
| 3020000109 | 1″ | 12 | 17 | 40 | ✓ |
