Описание
| Налягане: 0.99 bar – 10 bar. | Температурен диапазон: – 40 °C + 90 °C | Материал: Полиамид PA |
|---|

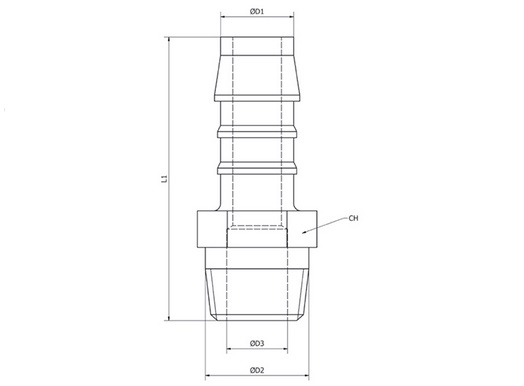

| Код за поръчка: | ØD1 | ØD2 | ØD3 | L1 | CH | Наличност: |
|---|---|---|---|---|---|---|
| 3040-1804 | 4 | 1/8 | 2.5 | 27 | 10 | ✓ |
| 3040-1404 | 4 | 1/4 | 2.5 | 32 | 14 | ✓ |
| 3040-1405 | 5 | 1/4 | 4 | 36 | 14 | ✓ |
| 3040-1806 | 6 | 1/8 | 4 | 32.5 | 10 | ✓ |
| 3040-1406 | 6 | 1/4 | 4 | 37.5 | 14 | ✓ |
| 3040-3806 | 6 | 3/8 | 5 | 39 | 17 | ✓ |
| 3040-1808 | 8 | 1/8 | 5.6 | 38 | 14 | ✓ |
| 3040-1408 | 8 | 1/4 | 5.6 | 41 | 17 | ✓ |
| 3040-3808 | 8 | 3/8 | 5.6 | 41 | 17 | ✓ |
| 3040-1208 | 8 | 1/2 | 5.6 | 49 | 22 | ✓ |
| 3040-1410 | 10 | 1/4 | 7 | 43.5 | 14 | ✓ |
| 3040-3810 | 10 | 3/8 | 7 | 43.5 | 17 | ✓ |
| 3040-3812 | 12 | 3/8 | 8.6 | 45.5 | 17 | ✓ |
| 3040-1212 | 12 | 1/2 | 8.6 | 45.5 | 17 | ✓ |
| 3040-3814 | 14 | 3/8 | 10 | 56 | 17 | ✓ |
| 3040-1214 | 14 | 1/2 | 10 | 56 | 22 | ✓ |
| 3040-1216 | 16 | 1/2 | 12 | 58 | 22 | ✓ |
| 3040-3416 | 16 | 3/4 | 12 | 58 | 27 | ✓ |
| 3040-3419 | 19 | 3/4 | 15 | 58 | 27 | ✓ |
| 3040-0125 | 25 | 1″ | 20.5 | 68.5 | 32 | ✓ |
