Описание
| Размер: | Налягане: |
|---|---|
| 1/8 | – 0.99 ~ 150 bar. |
| 1/4 | – 0.99 ~ 100 bar. |
| 3/8 | – 0.99 ~ 75 bar. |
| 1/2 | – 0.99 ~ 50 bar. |
| 3/4 | – 0.99 ~ 85 bar. |
| 1″ | – 0.99 ~ 80 bar. |

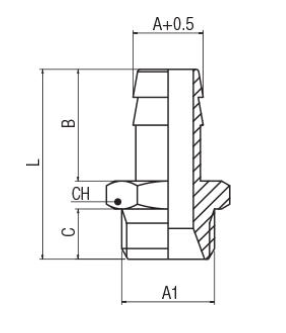

| Код за поръчка: | A | A1 | B | C | L | CH | Наличност: |
|---|---|---|---|---|---|---|---|
| 30450001BQNB | 4 | 1/8 | 20 | 6 | 30 | 14 | ✓ |
| 304500018SNB | 4.5 | M5 | 15 | 4 | 23 | 8 | ✓ |
| 30450001BSNB | 6 | 1/8 | 20 | 6 | 30 | 14 | ✓ |
| 30450001BZNB | 7 | 1/8 | 20 | 6 | 30 | 14 | ✓ |
| 30450001BXNB | 7 | 1/4 | 20 | 8 | 33 | 17 | ✓ |
| 30450001BYNB | 8 | 1/8 | 20 | 6 | 30 | 14 | ✓ |
| 30450001BJNB | 8 | 1/4 | 20 | 8 | 33 | 17 | ✓ |
| 30450001CANB | 9 | 1/8 | 20 | 6 | 30 | 14 | ✓ |
| 30450001CBNB | 9 | 1/4 | 20 | 8 | 33 | 17 | ✓ |
| 30450001CCNB | 9 | 3/8 | 20 | 9 | 34 | 19 | ✓ |
| 30450001CINB | 12 | 1/4 | 20 | 8 | 33 | 17 | ✓ |
| 30450001CLNB | 12 | 3/8 | 20 | 9 | 34 | 19 | ✓ |
| 30450001CMNB | 12 | 1/2 | 22 | 10 | 37.5 | 24 | ✓ |
| 30450001CTNB | 17 | 3/8 | 24 | 9 | 38 | 19 | ✓ |
| 30450001CUNB | 17 | 1/2 | 24 | 10 | 39.5 | 24 | ✓ |
| 3045-0120 | 20 | 1″ | – | 13 | 55 | 28 | ✓ |
| 3045-4130 | 30 | 1″1/4 | – | 15.5 | 69 | 38 | ✓ |
| 3045-4135 | 35 | 1″1/4 | – | 15.5 | 70 | 38 | ✓ |
| 3045-2135 | 35 | 1″1/2 | – | 15.5 | 70 | 40 | ✓ |
| 3045-4138 | 38 | 1″1/4 | – | 15.5 | 70 | 38 | ✓ |
| 3045-2138 | 38 | 1″1/2 | – | 15.5 | 76 | 44 | ✓ |
| 3045-4140 | 40 | 1″1/4 | – | 15.5 | 70 | 42 | ✓ |
| 3045-2145 | 45 | 1″1/2 | – | 14 | 74.5 | 46.5 | ✓ |
| 3045-2150 | 50 | 1″1/2 | – | 14 | 74.5 | 52 | ✓ |
| 3045-0260 | 60 | 2″ | – | 14 | 84 | 62 | ✓ |
