Описание
| Размер: | Налягане: |
|---|---|
| 1/8 | – 0.99 ~ 150 bar. |
| 1/4 | – 0.99 ~ 100 bar. |
| 3/8 | – 0.99 ~ 75 bar. |
| 1/2 | – 0.99 ~ 50 bar. |
| 3/4 | – 0.99 ~ 85 bar. |
| 1″ | – 0.99 ~ 80 bar. |

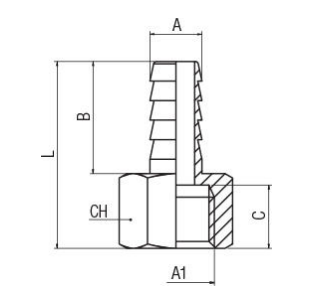

| Код за поръчка: | A | A1 | B | C | L | CH | Наличност: |
|---|---|---|---|---|---|---|---|
| 30500001BSNB | 6 | 1/8 | 19.5 | 8.5 | 30 | 14 | ✓ |
| 30500001BTNB | 6 | 1/4 | 19.5 | 11 | 32.5 | 17 | ✓ |
| 30500001BZNB | 7 | 1/8 | 19.5 | 8.5 | 30 | 14 | ✓ |
| 30500001BXNB | 7 | 1/4 | 19.5 | 11 | 32.5 | 17 | ✓ |
| 3050-1808 | 8 | 1/8 | 19 | 8 | 28.5 | 12 | ✓ |
| 30500001BJNB | 8 | 1/4 | 19.5 | 11 | 32.5 | 17 | ✓ |
| 3050-3808 | 8 | 3/8 | 19.5 | 10 | 34.5 | 19 | ✓ |
| 3050-1208 | 8 | 1/2 | 19 | 10 | 32.5 | 24 | ✓ |
| 3050-1809 | 9 | 1/8 | 19 | 8 | 28.5 | 12 | ✓ |
| 30500001CBNB | 9 | 1/4 | 19.5 | 11 | 32.5 | 17 | ✓ |
| 30500001CCNB | 9 | 3/8 | 19.5 | 11.5 | 33.5 | 20 | ✓ |
| 3050-1810 | 10 | 1/8 | 20 | 8 | 29.5 | 12 | ✓ |
| 30500001CFNB | 10 | 1/4 | 19.5 | 11 | 32.5 | 17 | ✓ |
| 30500001CGNB | 10 | 3/8 | 19.5 | 11.5 | 33.5 | 20 | ✓ |
| 3050-1210 | 10 | 1/2 | 20 | 14 | 36 | 24 | ✓ |
| 3050-1412 | 12 | 1/4 | 20 | 11 | 32.5 | 15 | ✓ |
| 30500001CLNB | 12 | 3/8 | 19.5 | 11.5 | 33.5 | 20 | ✓ |
| 30500001CMNB | 12 | 1/2 | 19.5 | 14.5 | 37.5 | 24 | ✓ |
| 3050-3814 | 14 | 3/8 | 22 | 11.5 | 35 | 19 | ✓ |
| 3050-1214 | 14 | 1/2 | 22 | 14 | 38 | 24 | ✓ |
| 3050-3816 | 16 | 3/8 | 22 | 11.5 | 35 | 19 | ✓ |
| 3050-1216 | 16 | 1/2 | 22 | 14 | 38 | 24 | ✓ |
| 3050-3817 | 17 | 3/8 | 24 | 11.5 | 37 | 19 | ✓ |
| 3050-1217 | 17 | 1/2 | 24 | 14 | 40 | 24 | ✓ |
| 3050-1218 | 18 | 1/2 | 24 | 14 | 40 | 24 | ✓ |
| 3050-3418 | 18 | 3/4 | 24 | 15 | 41.5 | 29 | ✓ |
| 3050-1220 | 20 | 1/2 | 23 | 14 | 40.5 | 24 | ✓ |
| 3050-3420 | 20 | 3/4 | 24 | 15 | 41.5 | 29 | ✓ |
| 3050-3425 | 25 | 3/4 | 30 | 15 | 47.5 | 29 | ✓ |
