Описание

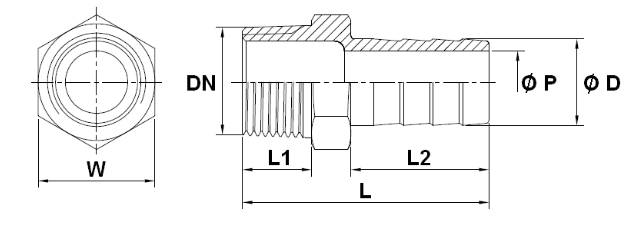

| DN | 1/4 | 3/8 | 1/2 | 3/4 |
|---|---|---|---|---|
| L | 43 | 49 | 56.5 | 60 |
| L1 | 11.5 | 13 | 15 | 15.5 |
| L2 | 25 | 29.5 | 33 | 34 |
| Ø D | 8 | 10 | 13 | 20 |
| Ø P | 4 | 5 | 7 | 15 |
| W | 15 | 19 | 23 | 28 |
| Наличност: | ✓ | ✓ | ✓ | ✓ |
| DN | 1″ | 1″1/4 | 1″1/2 | 2″ |
|---|---|---|---|---|
| L | 69 | 70 | 80 | 88 |
| L1 | 19 | 22 | 22 | 22.5 |
| L2 | 39 | 37 | 47.5 | 53.5 |
| Ø D | 25 | 32 | 40 | 51.5 |
| Ø P | 19.5 | 26.5 | 33.5 | 44 |
| W | 37 | 46 | 50 | 62 |
| Наличност: | ✓ | ✓ | ✓ | ✓ |
