Описание

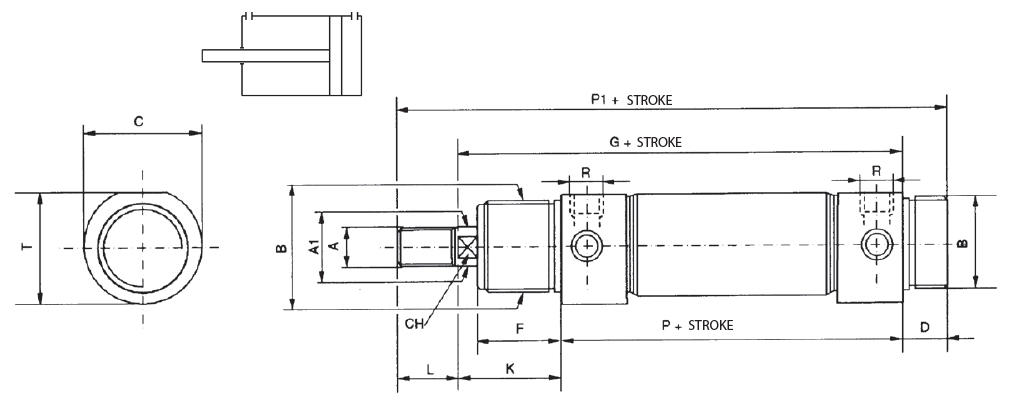

| Ø | A | A1 | B | T | C | D | F | G | K | L | P | P1 | CH | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | M10x1.25 | 12 | M30x1.5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8″GAS |
| 40 | M12x1.25 | 16 | M38x1.5 | 44 | 46 | 16 | 35 | 156 | 45 | 24 | 111 | 196 | 12 | 1/4″GAS |
| 50 | M16x1.5 | 20 | M45x1.5 | 55 | 57 | 18 | 38 | 170 | 50 | 32 | 120 | 220 | 16 | 1/4″GAS |
| 63 | M16x1.5 | 20 | M45x1.5 | 67.5 | 70 | 18 | 38 | 174 | 50 | 32 | 124 | 224 | 16 | 3/8″GAS |
| Код за поръчка: | Ø | Ход на бутален прът: | Наличност: |
|---|---|---|---|
| AF32x10 | 32 | 10 | |
| AF32x25 | 32 | 25 | |
| AF32x50 | 32 | 50 | |
| AF32x80 | 32 | 80 | |
| AF32x100 | 32 | 100 | |
| AF32x125 | 32 | 125 | |
| AF32x160 | 32 | 160 | |
| AF32x200 | 32 | 200 | |
| AF32x250 | 32 | 250 | |
| AF32x320 | 32 | 320 | |
| AF32x400 | 32 | 400 | |
| AF32x500 | 32 | 500 | |
| AF40x10 | 40 | 10 | |
| AF40x25 | 40 | 25 | |
| AF40x50 | 40 | 50 | |
| AF40x80 | 40 | 80 | |
| AF40x100 | 40 | 100 | |
| AF40x125 | 40 | 125 | |
| AF40x160 | 40 | 160 | |
| AF40x200 | 40 | 200 | |
| AF40x250 | 40 | 250 | |
| AF40x320 | 40 | 320 | |
| AF40x400 | 40 | 400 | |
| AF40x500 | 40 | 500 | |
| AF50x10 | 50 | 10 | |
| AF50x25 | 50 | 25 | |
| AF50x50 | 50 | 50 | |
| AF50x80 | 50 | 80 | |
| AF50x100 | 50 | 100 | |
| AF50x125 | 50 | 125 | |
| AF50x160 | 50 | 160 | |
| AF50x200 | 50 | 200 | |
| AF50x250 | 50 | 250 | |
| AF50x320 | 50 | 320 | |
| AF50x400 | 50 | 400 | |
| AF50x500 | 50 | 500 | |
| AF63x10 | 63 | 10 | |
| AF63x25 | 63 | 25 | |
| AF63x50 | 63 | 50 | |
| AF63x80 | 63 | 80 | |
| AF63x100 | 63 | 100 | |
| AF63x125 | 63 | 125 | |
| AF63x160 | 63 | 160 | |
| AF63x200 | 63 | 200 | |
| AF63x250 | 63 | 250 | |
| AF63x320 | 63 | 320 | |
| AF63x400 | 63 | 400 | |
| AF63x500 | 63 | 500 |
