Описание
| Размери Ф: | Налягане: |
|---|---|
| 4 | 148.6 bar. |
| 6 | 148.6 bar. |
| 8 | 133.6 bar. |
| 10 | 94 bar. |
| 12 | 74.2 bar. |
| 14 | 99 bar. |
| 15 | 94 bar. |
| 16 | 94 bar. |
| 18 | 69.3 bar. |
| 22 | 69.3 bar. |

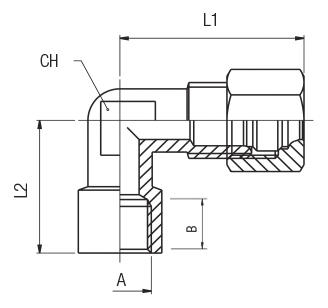

| Код за поръчка: | Размер: | A | B | L1 | L2 | CH | Наличност: |
|---|---|---|---|---|---|---|---|
| 1329000001 | 4 | 1/8 | 8.5 | 23 | 18 | 8 | ✓ |
| 1329000002 | 6 | 1/8 | 8.5 | 24 | 18 | 9 | ✓ |
| 1329000003 | 6 | 1/4 | 10.5 | 24.5 | 22.5 | 11 | ✓ |
| 1329000004 | 8 | 1/8 | 8.5 | 30 | 21 | 11 | ✓ |
| 1329000005 | 8 | 1/4 | 11 | 30.5 | 25.5 | 13 | ✓ |
| 1329000006 | 8 | 3/8 | 10.5 | 31 | 25 | 14 | ✓ |
| 1329000007 | 10 | 1/4 | 11 | 34 | 25 | 13 | ✓ |
| 1329000008 | 10 | 3/8 | 10.5 | 34 | 25 | 14 | ✓ |
| 1329000009 | 10 | 1/2 | 10.5 | 34 | 27 | 15 | ✓ |
| 1329000010 | 12 | 1/4 | 11 | 36 | 26 | 14 | ✓ |
| 1329000011 | 12 | 3/8 | 10.5 | 36 | 26 | 14 | ✓ |
| 1329000012 | 12 | 1/2 | 10.5 | 36 | 27 | 15 | ✓ |
| 1329000013 | 14 | 1/2 | 10.5 | 39 | 30 | 18 | ✓ |
| 1329000014 | 15 | 1/2 | 10.5 | 39 | 30 | 18 | ✓ |
| 1329000015 | 16 | 1/2 | 10.5 | 41.5 | 30 | 18 | ✓ |
| 1329000016 | 18 | 1/2 | 10.5 | 41.5 | 29 | 20 | ✓ |
| 1329000017 | 18 | 3/4 | 14 | 41.5 | 33.5 | 20 | ✓ |
