BB – еднодействащ цилиндър къс ход с магнит /32-100/

Описание

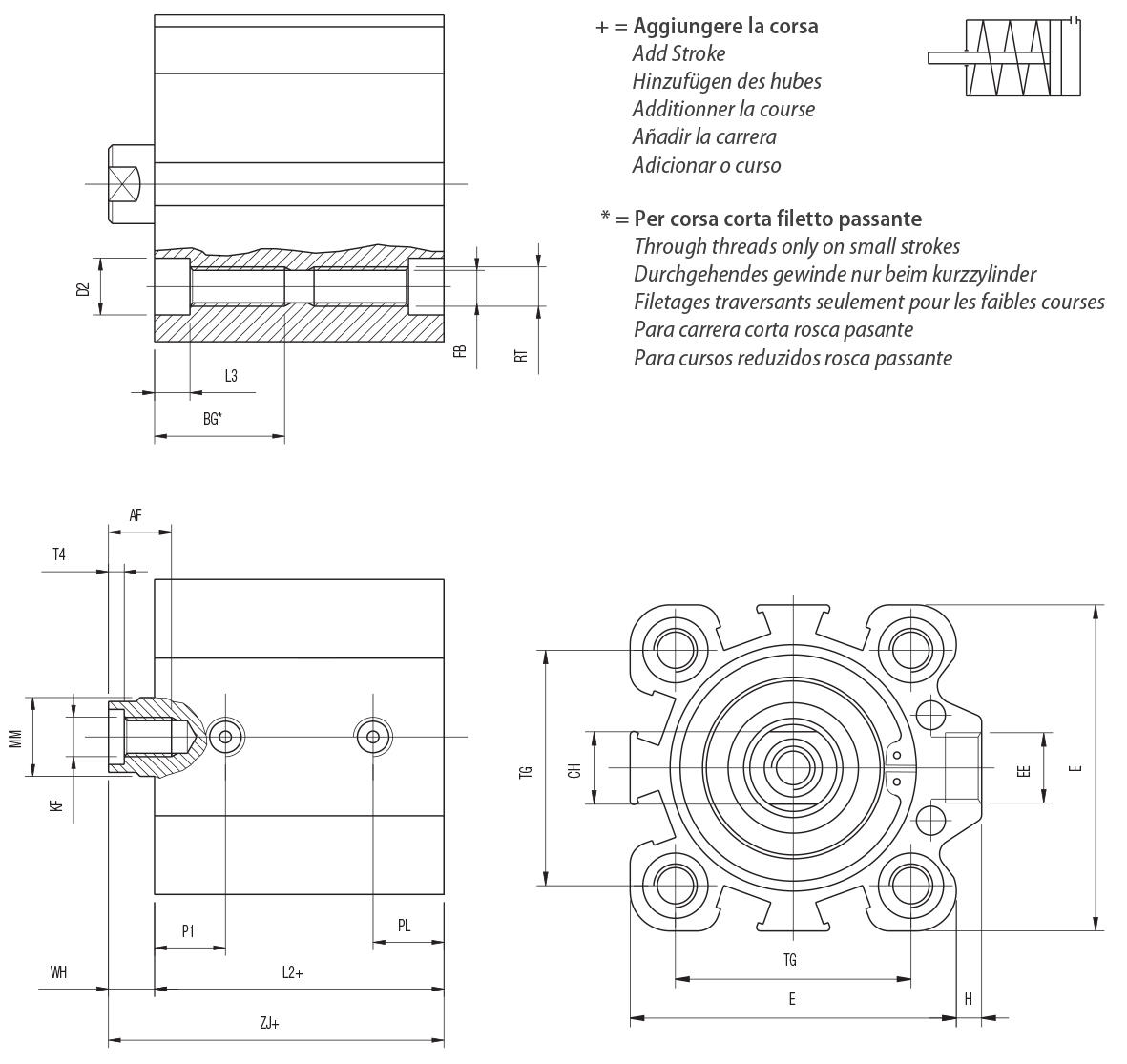

Ø	KK	A	AF	RT	BG*	ØD2	E	EE	ØFB	H	KF
32	M10x1.25	22	10	M6	21.7	8.5	45	G1/8	5	3.5	M6
40	M10x1.25	22	10	M6	21.7	8.5	52	G1/8	5	5	M6
50	M12x1.25	24	12	M8	22.8	10	63.5	G1/8	6.8	7	M8
63	M12x1.25	24	12	M8	22.8	10	77	G1/8	6.8	7	M8
80	M16x1.5	32	16	M10	25	13	92	G1/8	8.5	10	M10
100	M20x1.5	40	20	M10	25	13	113	G1/4	8.5	13	M12

Ø	L2+	L3	ØMM	P1	PL	T4	TG	WH	ZJ+	CH
32	32	5.7	12	10	10	2.8	32.5	7	39	10
40	38.5	5.7	12	11	11	2.8	38	7.2	45.7	10
50	39	6.8	16	11	11	3.5	46.5	8.5	47.5	13
63	46	6.8	16	11.5	11.5	3.5	56.5	8	54	13
80	54	9	20	14	14	4.5	72	11	65	17
100	65	9	25	17.5	17.5	6	89	12	77	22

Код за поръчка:	Ø	Ход на бутален прът:	Наличност:
BB32x05	32	5
BB32x10	32	10
BB32x15	32	15
BB32x20	32	20	✓
BB32x25	32	25
BB32x30	32	30	✓
BB32x40	32	40
BB32x50	32	50
BB40x05	40	5
BB40x10	40	10
BB40x15	40	15
BB40x20	40	20
BB40x25	40	25
BB40x30	40	30
BB40x40	40	40
BB40x50	40	50
BB50x05	50	5
BB50x10	50	10
BB50x15	50	15
BB50x20	50	20
BB50x25	50	25
BB50x30	50	30
BB50x40	50	40
BB50x50	50	50
BB63x05	63	5
BB63x10	63	10
BB63x15	63	15
BB63x20	63	20
BB63x25	63	25	✓
BB63x30	63	30
BB63x40	63	40
BB63x50	63	50
BB80x05	80	5
BB80x10	80	10
BB80x15	80	15
BB80x20	80	20
BB80x25	80	25
BB80x30	80	30
BB80x40	80	40
BB80x50	80	50
BB100x05	100	5
BB100x10	100	10
BB100x15	100	15
BB100x20	100	20
BB100x25	100	25
BB100x30	100	30
BB100x40	100	40
BB100x50	100	50
