BD – еднодействащ цилиндър къс ход с магнит и избут. пружина /32-100/

Описание

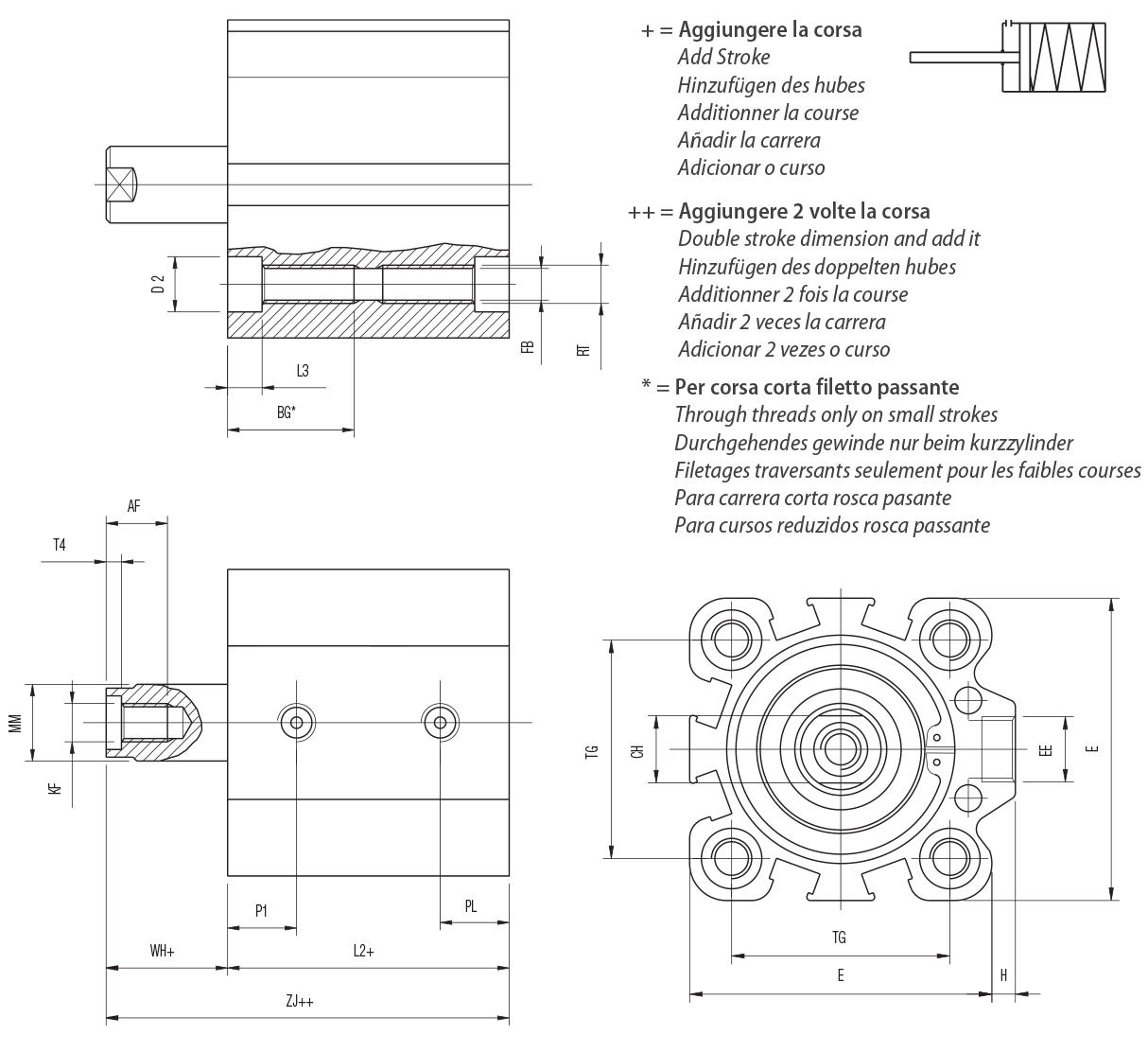

Ø	KK	A	AF	RT	BG*	ØD2	E	EE	ØFB	H	KF
32	M10x1.25	22	10	M6	21.7	8.5	45	G1/8	5	3.5	M6
40	M10x1.25	22	10	M6	21.7	8.5	52	G1/8	5	5	M6
50	M12x1.25	24	12	M8	22.8	10	63.5	G1/8	6.8	7	M8
63	M12x1.25	24	12	M8	22.8	10	77	G1/8	6.8	7	M8
80	M16x1.5	32	16	M10	25	13	92	G1/8	8.5	10	M10
100	M20x1.5	40	20	M10	25	13	113	G1/4	8.5	13	M12

Ø	L2+	L3	ØMM	P1	PL	T4	TG	WH+	ZJ++	CH
32	32	5.7	12	10	10	2.8	32.5	7	39	10
40	38.5	5.7	12	11	11	2.8	38	7.2	45.7	10
50	39	6.8	16	11	11	3.5	46.5	8.5	47.5	13
63	46	6.8	16	11.5	11.5	3.5	56.5	8	54	13
80	54	9	20	14	14	4.5	72	11	65	17
100	65	9	25	17.5	17.5	6	89	12	77	22

Код за поръчка:	Ø	Ход на бутален прът:	Наличност:
BD32x05	32	5
BD32x10	32	10
BD32x15	32	15
BD32x20	32	20
BD32x25	32	25	✓
BD32x30	32	30
BD32x40	32	40
BD32x50	32	50
BD40x05	40	5
BD40x10	40	10
BD40x15	40	15
BD40x20	40	20
BD40x25	40	25
BD40x30	40	30
BD40x40	40	40
BD40x50	40	50
BD50x05	50	5
BD50x10	50	10
BD50x15	50	15
BD50x20	50	20
BD50x25	50	25
BD50x30	50	30
BD50x40	50	40
BD50x50	50	50
BD63x05	63	5
BD63x10	63	10
BD63x15	63	15
BD63x20	63	20
BD63x25	63	25
BD63x30	63	30
BD63x40	63	40
BD63x50	63	50
BD80x05	80	5
BD80x10	80	10
BD80x15	80	15
BD80x20	80	20
BD80x25	80	25
BD80x30	80	30
BD80x40	80	40	✓
BD80x50	80	50
BD100x05	100	5
BD100x10	100	10
BD100x15	100	15
BD100x20	100	20
BD100x25	100	25
BD100x30	100	30
BD100x40	100	40
BD100x50	100	50
