Описание

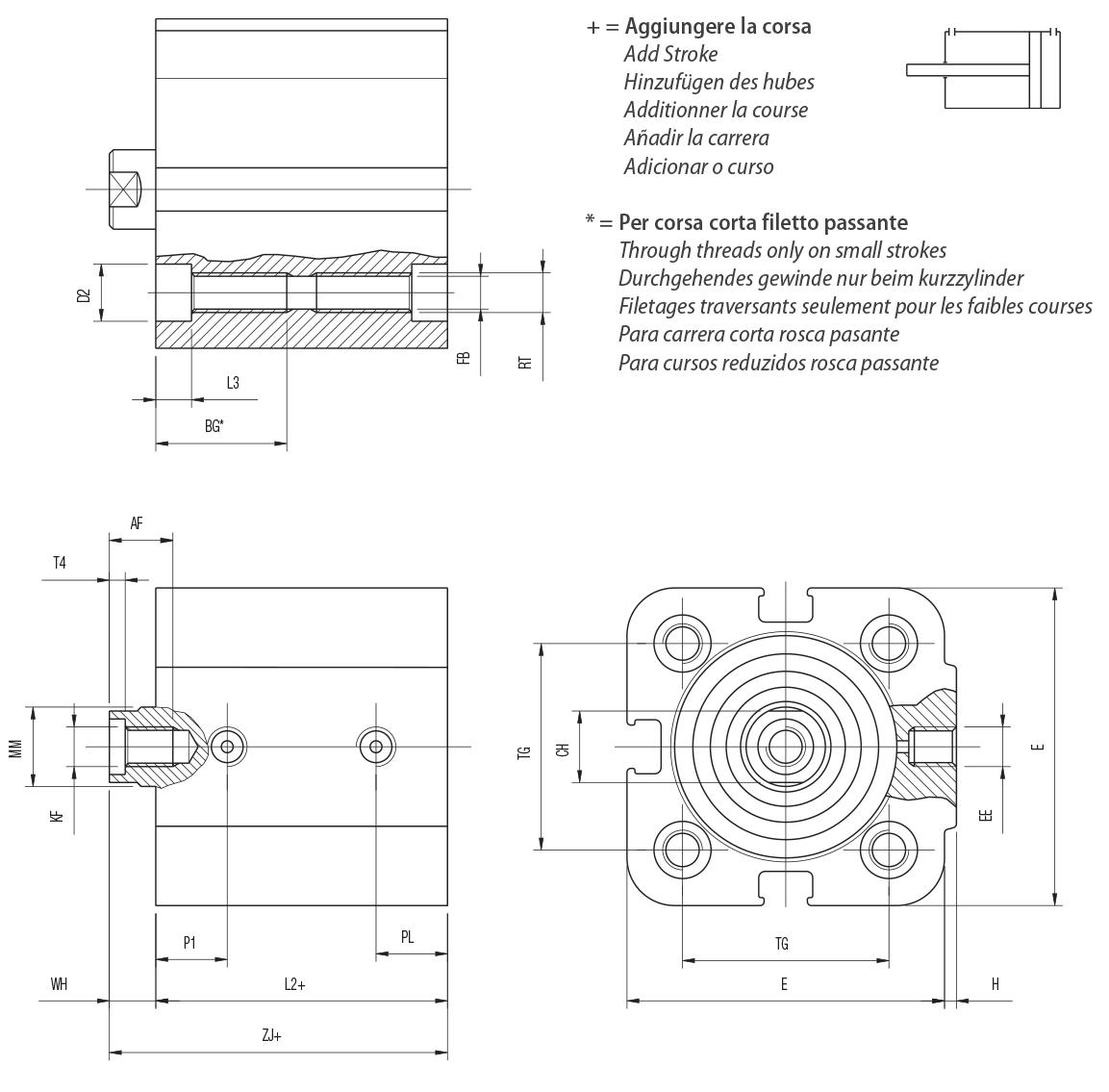

| Ø | KK | A | AF | RT | BG* | ØD2 | E | EE | ØFB | H | KF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | M6 | 16 | 6 | M4 | 12.5 | 5.5 | 29 | M5 | 3.3 | 1 | M3 |
| 16 | M8 | 20 | 8 | M4 | 14.5 | 5.5 | 29 | M5 | 3.3 | 1 | M4 |
| 20 | M10x1.25 | 22 | 8 | M5 | 16.5 | 7.2 | 36 | M5 | 4.2 | 1.5 | M5 |
| 25 | M10x1.25 | 22 | 8 | M5 | 16.5 | 7.2 | 40 | M5 | 4.2 | 1.5 | M5 |
| Ø | L2+ | L3 | ØMM | P1 | PL | T4 | TG | WH | ZJ+ | CH |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 28 | 3.5 | 6 | 7.5 | 7.5 | 1.5 | 18 | 6 | 34 | 5 |
| 16 | 30.5 | 3.5 | 8 | 8.5 | 8.5 | 2 | 18 | 6 | 36.5 | 7 |
| 20 | 31.5 | 4.5 | 10 | 9 | 9 | 2 | 22 | 6 | 37.5 | 9 |
| 25 | 31.5 | 4.5 | 10 | 9 | 9 | 2 | 26 | 6 | 37.5 | 9 |
| Код за поръчка: | Ø | Ход на бутален прът: | Наличност: |
|---|---|---|---|
| BF12x05 | 12 | 5 | ✓ |
| BF12x10 | 12 | 10 | ✓ |
| BF12x15 | 12 | 15 | ✓ |
| BF12x20 | 12 | 20 | ✓ |
| BF12x25 | 12 | 25 | ✓ |
| BF12x30 | 12 | 30 | |
| BF12x40 | 12 | 40 | ✓ |
| BF16x05 | 16 | 5 | |
| BF16x10 | 16 | 10 | ✓ |
| BF16x15 | 16 | 15 | ✓ |
| BF16x20 | 16 | 20 | ✓ |
| BF16x25 | 16 | 25 | ✓ |
| BF16x30 | 16 | 30 | |
| BF16x40 | 16 | 40 | ✓ |
| BF16x65 | 16 | 65 | ✓ |
| BF20x05 | 20 | 5 | ✓ |
| BF20x10 | 20 | 10 | ✓ |
| BF20x15 | 20 | 15 | ✓ |
| BF20x20 | 20 | 20 | ✓ |
| BF20x25 | 20 | 25 | ✓ |
| BF20x30 | 20 | 30 | ✓ |
| BF20x40 | 20 | 40 | ✓ |
| BF20x50 | 20 | 50 | ✓ |
| BF25x05 | 25 | 5 | |
| BF25x10 | 25 | 10 | ✓ |
| BF25x15 | 25 | 15 | ✓ |
| BF25x20 | 25 | 20 | ✓ |
| BF25x25 | 25 | 25 | ✓ |
| BF25x30 | 25 | 30 | ✓ |
| BF25x40 | 25 | 40 | ✓ |
| BF25x50 | 25 | 50 | ✓ |
