BF – двойно действащ цилиндър къс ход с магнит /32-100/

Описание

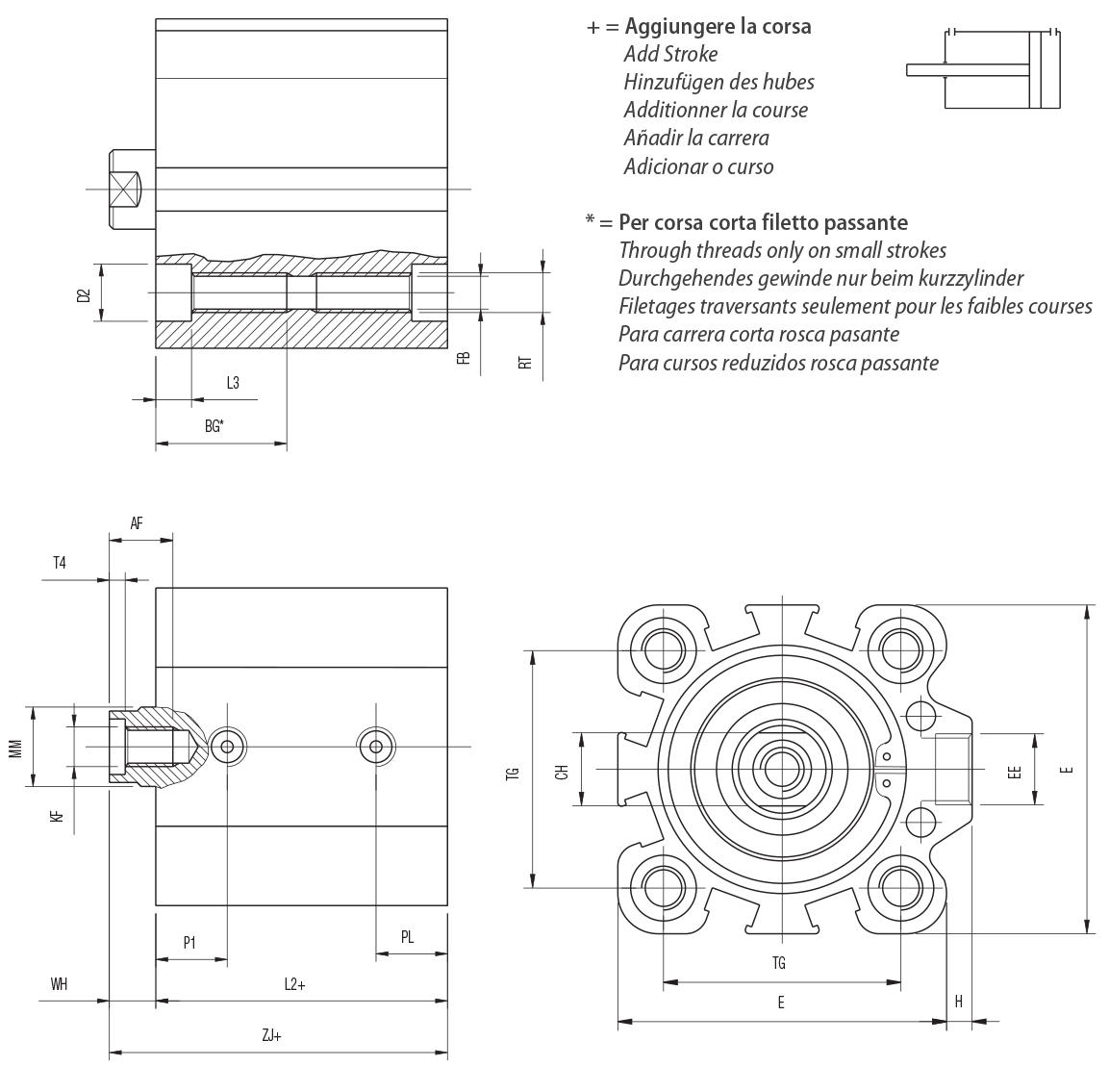

Ø	KK	A	AF	RT	BG*	ØD2	E	EE	ØFB	H	KF
32	M10x1.25	22	10	M6	21.7	8.5	45	G1/8	5	3.5	M6
40	M10x1.25	22	10	M6	21.7	8.5	52	G1/8	5	5	M6
50	M12x1.25	24	12	M8	22.8	10	63.5	G1/8	6.8	7	M8
63	M12x1.25	24	12	M8	22.8	10	77	G1/8	6.8	7	M8
80	M16x1.5	32	16	M10	25	13	92	G1/8	8.5	10	M10
100	M20x1.5	40	20	M10	25	13	113	G1/4	8.5	13	M12

Ø	L2+	L3	ØMM	P1	PL	T4	TG	WH	ZJ+	CH
32	32	5.7	12	10	10	2.8	32.5	7	39	10
40	38.5	5.7	12	11	11	2.8	38	7.2	45.7	10
50	39	6.8	16	11	11	3.5	46.5	8.5	47.5	13
63	46	6.8	16	11.5	11.5	3.5	56.5	8	54	13
80	54	9	20	14	14	4.5	72	11	65	17
100	65	9	25	17.5	17.5	6	89	12	77	22

Код за поръчка:	Ø	Ход на бутален прът:	Наличност:
BF32x05	32	5
BF32x10	32	10	✓
BF32x15	32	15	✓
BF32x20	32	20	✓
BF32x25	32	25	✓
BF32x30	32	30	✓
BF32x40	32	40	✓
BF32x50	32	50	✓
BF32x75	32	75
BF32x100	32	100
BF40x05	40	5
BF40x10	40	10	✓
BF40x15	40	15	✓
BF40x20	40	20	✓
BF40x25	40	25	✓
BF40x30	40	30	✓
BF40x40	40	40	✓
BF40x50	40	50	✓
BF40x75	40	75
BF40x100	40	100
BF50x05	50	5
BF50x10	50	10	✓
BF50x15	50	15	✓
BF50x20	50	20	✓
BF50x25	50	25	✓
BF50x30	50	30	✓
BF50x40	50	40	✓
BF50x50	50	50	✓
BF50x75	50	75
BF50x100	50	100
BF63x05	63	5
BF63x10	63	10
BF63x15	63	15
BF63x20	63	20	✓
BF63x25	63	25
BF63x30	63	30
BF63x40	63	40
BF63x50	63	50	✓
BF63x75	63	75
BF63x100	63	100
BF80x05	80	5
BF80x10	80	10	✓
BF80x15	80	15
BF80x20	80	20
BF80x25	80	25	✓
BF80x30	80	30	✓
BF80x40	80	40	✓
BF80x50	80	50
BF80x75	80	75
BF80x100	80	100
BF100x05	100	5
BF100x10	100	10
BF100x15	100	15
BF100x20	100	20
BF100x25	100	25	✓
BF100x30	100	30
BF100x40	100	40
BF100x50	100	50
BF100x75	100	75
BF100x100	100	100
