Описание

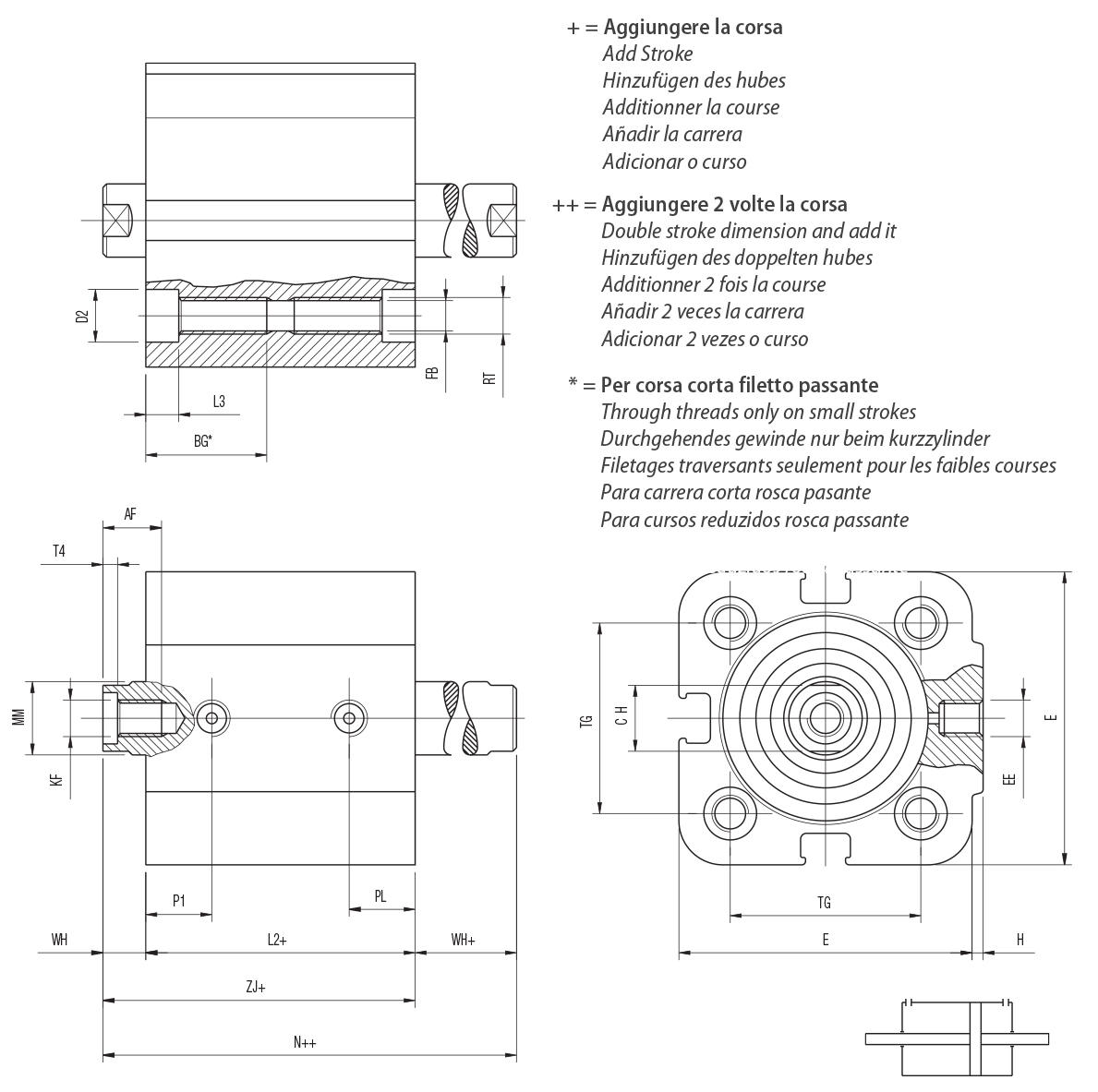

| Ø | KK | A | AF | RT | BG* | ØD2 | E | EE | ØFB | H | KF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | M6 | 16 | 6 | M4 | 12.5 | 5.5 | 29 | M5 | 3.3 | 1 | M3 |
| 16 | M8 | 20 | 8 | M4 | 14.5 | 5.5 | 29 | M5 | 3.3 | 1 | M4 |
| 20 | M10x1.25 | 22 | 8 | M5 | 16.5 | 7.2 | 36 | M5 | 4.2 | 1.5 | M5 |
| 25 | M10x1.25 | 22 | 8 | M5 | 16.5 | 7.2 | 40 | M5 | 4.2 | 1.5 | M5 |
| Ø | CH | L2 | L3 | ØMM | P1 | PL | T4 | TG | N++ | WH/WH+ | ZJ+ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 5 | 28 | 3.5 | 6 | 7.5 | 7.5 | 1.5 | 18 | 40 | 6 | 34 |
| 16 | 7 | 30.5 | 3.5 | 8 | 8.5 | 8.5 | 2 | 18 | 42.5 | 6 | 36.5 |
| 20 | 9 | 31.5 | 4.5 | 10 | 9 | 9 | 2 | 22 | 43.5 | 6 | 37.5 |
| 25 | 9 | 31.5 | 4.5 | 10 | 9 | 9 | 2 | 26 | 46 | 6 | 37.5 |
| Код за поръчка: | Ø | Ход на бутален прът: | Наличност: |
|---|---|---|---|
| BJ12x05 | 12 | 5 | |
| BJ12x10 | 12 | 10 | |
| BJ12x15 | 12 | 15 | |
| BJ12x20 | 12 | 20 | |
| BJ12x25 | 12 | 25 | |
| BJ12x30 | 12 | 30 | |
| BJ12x40 | 12 | 40 | |
| BJ16x05 | 16 | 5 | |
| BJ16x10 | 16 | 10 | |
| BJ16x15 | 16 | 15 | |
| BJ16x20 | 16 | 20 | |
| BJ16x25 | 16 | 25 | |
| BJ16x30 | 16 | 30 | |
| BJ16x40 | 16 | 40 | |
| BJ20x05 | 20 | 5 | |
| BJ20x10 | 20 | 10 | |
| BJ20x15 | 20 | 15 | |
| BJ20x20 | 20 | 20 | |
| BJ20x25 | 20 | 25 | |
| BJ20x30 | 20 | 30 | |
| BJ20x40 | 20 | 40 | |
| BJ20x50 | 20 | 50 | |
| BJ25x05 | 25 | 5 | |
| BJ25x10 | 25 | 10 | ✓ |
| BJ25x15 | 25 | 15 | |
| BJ25x20 | 25 | 20 | |
| BJ25x25 | 25 | 25 | |
| BJ25x30 | 25 | 30 | |
| BJ25x40 | 25 | 40 | |
| BJ25x50 | 25 | 50 |
