BJ – дв. действащ пн.цилиндър къс ход с двустранен прът и магнит /32-100/

Описание

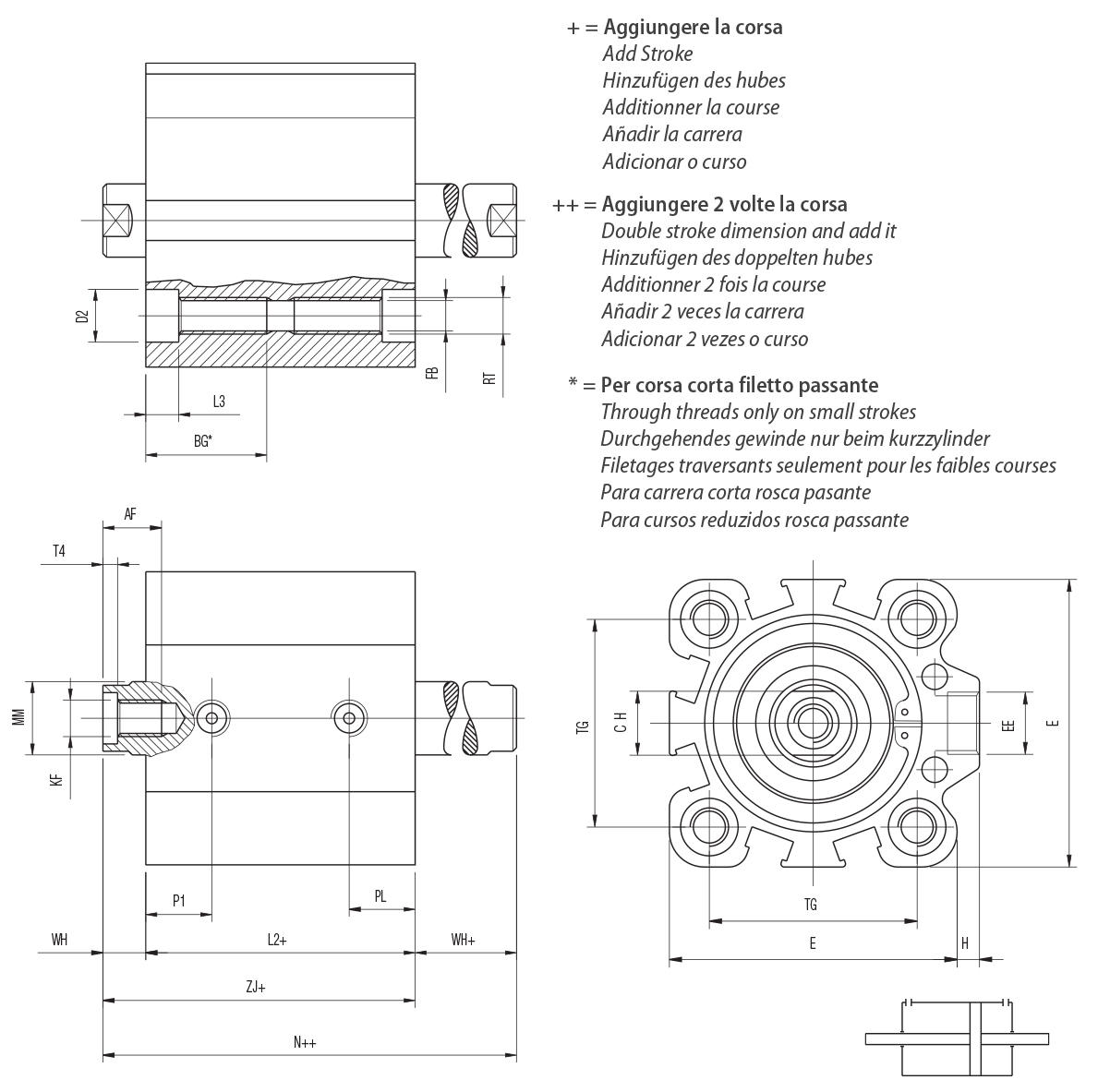

Ø	KK	A	AF	RT	BG*	ØD2	E	EE	ØFB	H	KF
32	M10x1.25	22	10	M6	21.7	8.5	45	G1/8	5	3.5	M6
40	M10x1.25	22	10	M6	21.7	8.5	52	G1/8	5	5	M6
50	M12x1.25	24	12	M8	22.8	10	63.5	G1/8	6.8	7	M8
63	M12x1.25	24	12	M8	22.8	10	77	G1/8	6.8	7	M8
80	M16x1.5	32	16	M10	25	13	92	G1/8	8.5	10	M10
100	M20x1.5	40	20	M10	25	13	113	G1/4	8.5	13	M12

Ø	CH	L2	L3	ØMM	P1	PL	T4	TG	N++	WH/WH+	ZJ+
32	10	32	5.7	12	10	10	2.8	32.5	46	7	39
40	10	38.5	5.7	12	11	11	2.8	38	53	7.2	45.7
50	13	39	6.8	16	11	11	3.5	46.5	56	8.5	47.5
63	13	46	6.8	16	11.5	11.5	3.5	56.5	62	8	54
80	17	54	9	20	14	14	4.5	72	76	11	65
100	22	65	9	25	17.5	17.5	6	89	89	12	77

Код за поръчка:	Ø	Ход на бутален прът:
BJ32x05	32	5
BJ32x10	32	10
BJ32x15	32	15
BJ32x20	32	20
BJ32x25	32	25
BJ32x30	32	30
BJ32x40	32	40
BJ32x50	32	50
BJ32x75	32	75
BJ32x100	32	100
BJ40x05	40	5
BJ40x10	40	10
BJ40x15	40	15
BJ40x20	40	20
BJ40x25	40	25
BJ40x30	40	30
BJ40x40	40	40
BJ40x50	40	50
BJ40x75	40	75
BJ40x100	40	100
BJ50x05	50	5
BJ50x10	50	10
BJ50x15	50	15
BJ50x20	50	20
BJ50x25	50	25
BJ50x30	50	30
BJ50x40	50	40
BJ50x50	50	50
BJ50x75	50	75
BJ50x100	50	100
BJ63x05	63	5
BJ63x10	63	10
BJ63x15	63	15
BJ63x20	63	20
BJ63x25	63	25
BJ63x30	63	30
BJ63x40	63	40
BJ63x50	63	50
BJ63x75	63	75
BJ63x100	63	100
BJ80x05	80	5
BJ80x10	80	10
BJ80x15	80	15
BJ80x20	80	20
BJ80x25	80	25
BJ80x30	80	30
BJ80x40	80	40
BJ80x50	80	50
BJ80x75	80	75
BJ80x100	80	100
BJ100x05	100	5
BJ100x10	100	10
BJ100x15	100	15
BJ100x20	100	20
BJ100x25	100	25
BJ100x30	100	30
BJ100x40	100	40
BJ100x50	100	50
BJ100x75	100	75
BJ100x100	100	100
