Описание

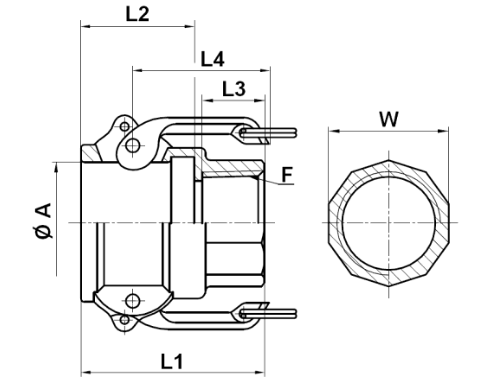

| DN | 1/2 | 3/4 | 1″ | 1″1/4 | 1″1/2 |
|---|---|---|---|---|---|
| F | 1/2 | 3/4 | 1″ | 1″1/4 | 1″1/2 |
| Ø A | 24.3 | 32.4 | 37.3 | 46 | 54 |
| L1 | 45.3-47.5 | 46-49.8 | 56-58.3 | 63-67 | 66-69.5 |
| L2 | 27 | 29 | 36 | 42 | 42 |
| L3 | 16-18 | 15-19 | 18.5-19 | 19-22 | 20-24 |
| L4 | 30 | 30 | 38 | 59 | 59 |
| W | 26.4-24.5 | 32 | 39-38 | 49-47.2 | 54.5-55 |
| Наличност: | ✓ | ✓ | ✓ | ✓ | ✓ |
| DN | 2″ | 2″1/2 | 3″ | 4″ |
|---|---|---|---|---|
| F | 2″ | 2″1/2 | 3″ | 4″ |
| Ø A | 63.8 | 76.5 | 92.2 | 120.3 |
| L1 | 76-75.2 | 83-84.8 | 87-88.5 | 93-95.5 |
| L2 | 47.5 | 50 | 51 | 52 |
| L3 | 25-24 | 29-30 | 31-32 | 35-36 |
| L4 | 59 | 59 | 70 | 70 |
| W | 65 | 81-79.5 | 95-94 | 121.5 |
| Наличност: | ✓ | ✓ | ✓ | ✓ |
