Описание

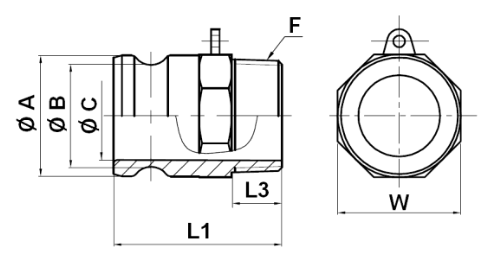

| DN | 1/2 | 3/4 | 1″ | 1″1/4 | 1″1/2 |
|---|---|---|---|---|---|
| F | 1/2 | 3/4 | 1″ | 1″1/4 | 1″1/2 |
| Ø A | 23.8 | 32.1 | 36.7 | 45.5 | 53.4 |
| Ø B | 18.2 | 26.2 | 29 | 35.2 | 43.1 |
| Ø C | 12.8 | 21.2 | 24 | 28.5 | 36.5 |
| L1 | 56 | 55.5 | 66 | 74 | 76 |
| L3 | 16 | 15 | 18 | 20 | 20 |
| W | 26.4 | 32 | 39 | 49 | 54.5 |
| Наличност: | ✓ | ✓ | ✓ | ✓ | ✓ |
| DN | 2″ | 2″1/2 | 3″ | 4″ |
|---|---|---|---|---|
| F | 2″ | 2″1/2 | 3″ | 4″ |
| Ø A | 63 | 75.8 | 91.5 | 119.5 |
| Ø B | 52.5 | 64.6 | 81 | 106 |
| Ø C | 46 | 56.6 | 73 | 98 |
| L1 | 86.5 | 96 | 100 | 112 |
| L3 | 23 | 28 | 31 | 37 |
| W | 64 | 77 | 93 | 120 |
| Наличност: | ✓ | ✓ | ✓ | ✓ |
