Описание

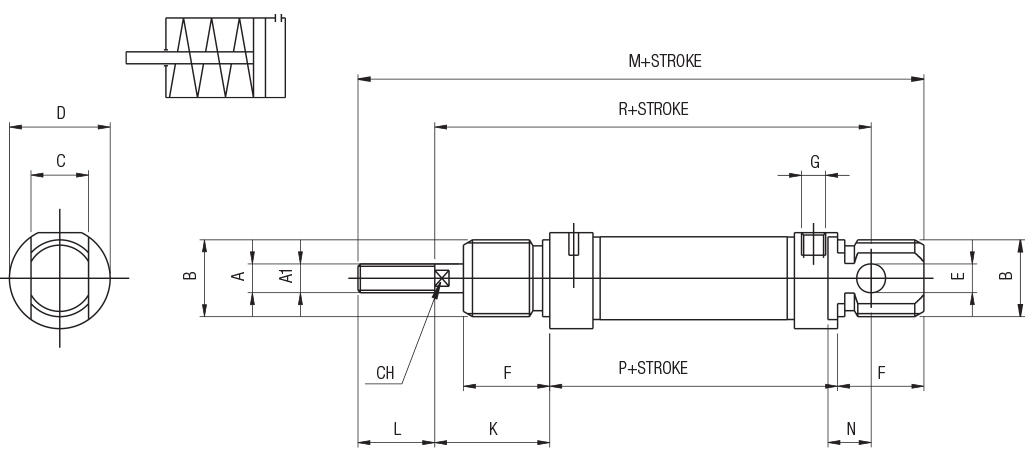

| Ø | A | A1 | B | C | D | E | F | G | K | L | M | N | P | R | CH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | M4 | 4 | M12x1.25 | 8 | 16 | 4 | 12 | M5 | 16 | 12 | 86 | 6 | 46 | 64 | – |
| 10 | M4 | 4 | M12x1.25 | 8 | 16 | 4 | 12 | M5 | 16 | 12 | 86 | 6 | 46 | 64 | – |
| 12 | M6 | 6 | M16x1.5 | 12 | 19 | 6 | 18 | M5 | 22 | 16 | 104 | 9 | 48 | 75 | 5 |
| 16 | M6 | 6 | M16x1.5 | 12 | 19 | 6 | 18 | M5 | 22 | 16 | 109 | 9 | 53 | 82 | 5 |
| 20 | M8 | 8 | M22x1.5 | 16 | 27 | 8 | 20 | 1/8G | 24 | 20 | 131 | 12 | 67 | 95 | 7 |
| 25 | M10x1.25 | 10 | M22x1.5 | 16 | 30 | 8 | 22 | 1/8G | 28 | 22 | 140 | 12 | 68 | 104 | 9 |
| Код за поръчка: | Ø | Ход на бутален прът: | Наличност: |
|---|---|---|---|
| MF8x10 | 8 | 10 | |
| MF8x25 | 8 | 25 | ✓ |
| MF8x40 | 8 | 40 | |
| MF8x50 | 8 | 50 | |
| MF10x10 | 10 | 10 | ✓ |
| MF10x25 | 10 | 25 | ✓ |
| MF10x40 | 10 | 40 | |
| MF10x50 | 10 | 50 | ✓ |
| MF12x10 | 12 | 10 | ✓ |
| MF12x25 | 12 | 25 | ✓ |
| MF12x40 | 12 | 40 | |
| MF12x50 | 12 | 50 | ✓ |
| MF16x10 | 16 | 10 | |
| MF16x15 | 16 | 15 | ✓ |
| MF16x25 | 16 | 25 | ✓ |
| MF16x40 | 16 | 40 | |
| MF16x50 | 16 | 50 | |
| MF20x10 | 20 | 10 | ✓ |
| MF20x25 | 20 | 25 | ✓ |
| MF20x40 | 20 | 40 | |
| MF20x50 | 20 | 50 | ✓ |
| MF25x10 | 25 | 10 | ✓ |
| MF25x25 | 25 | 25 | ✓ |
| MF25x40 | 25 | 40 | ✓ |
| MF25x50 | 25 | 50 | ✓ |
