Описание
| Размери Ф: | Налягане: |
|---|---|
| 4 | 148.6 bar. |
| 6 | 148.6 bar. |
| 8 | 133.6 bar. |
| 10 | 94 bar. |
| 12 | 74.2 bar. |
| 14 | 99 bar. |
| 15 | 94 bar. |
| 16 | 94 bar. |
| 18 | 69.3 bar. |
| 22 | 69.3 bar. |

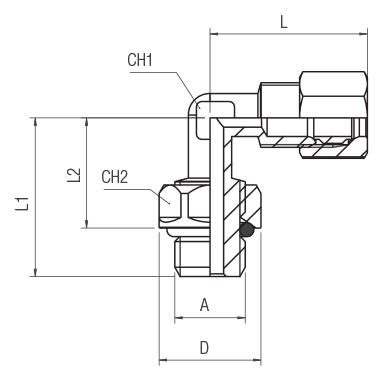

| Код за поръчка: | Размер: | A | L | L1 | L2 | D | CH1 | CH2 | Наличност: |
|---|---|---|---|---|---|---|---|---|---|
| 1330000001 | 4 | 1/8 | 23 | 22.5 | 15.5 | 15 | 9 | 14 | ✓ |
| 1330000002 | 4 | 1/4 | 23 | 30 | 19 | 19 | 9 | 17 | ✓ |
| 1330000003 | 6 | 1/8 | 24.5 | 23 | 15.5 | 15 | 9 | 14 | ✓ |
| 1330000004 | 6 | 1/4 | 24 | 21 | 19 | 19 | 9 | 17 | ✓ |
| 1330000005 | 8 | 1/8 | 29 | 23 | 15.5 | 15 | 9 | 14 | ✓ |
| 1330000006 | 8 | 1/4 | 29 | 29.5 | 19 | 19 | 9 | 17 | ✓ |
| 1330000007 | 8 | 3/8 | 29.5 | 30.5 | 19 | 22 | 13 | 20 | ✓ |
| 1330000008 | 10 | 1/4 | 32.5 | 30 | 19 | 19 | 13 | 17 | ✓ |
| 1330000009 | 10 | 3/8 | 32.5 | 30.5 | 19 | 22 | 13 | 20 | ✓ |
| 1330000010 | 10 | 1/2 | 33.5 | 39 | 24 | 25 | 17 | 23 | ✓ |
| 1330000011 | 14 | 3/8 | 38.5 | 33.5 | 19 | 22 | 17 | 20 | ✓ |
| 1330000012 | 14 | 1/2 | 38.5 | 39 | 24 | 25 | 17 | 23 | ✓ |
| 1330000013 | 18 | 1/2 | 41.5 | 39.5 | 24 | 25 | 20 | 23 | ✓ |
| 1330000014 | 18 | 3/4 | 41.5 | 42 | 25.5 | 32 | 20 | 30 | ✓ |
| 1330000015 | 22 | 3/4 | 44.5 | 50 | 25.5 | 32 | 20 | 30 | ✓ |
| 1330000016 | 22 | 1“ | 44.5 | 54 | 35 | 44 | 27 | 41 | ✓ |
