Описание

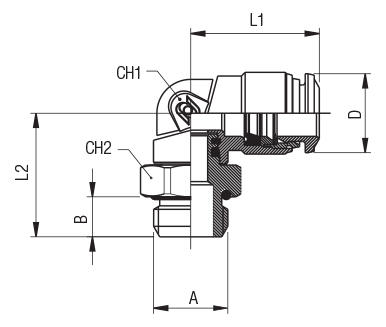

| Код за поръчка: | Шлаух: | A | B | L1 | L2 | CH1 | CH2 | D | Наличност: |
|---|---|---|---|---|---|---|---|---|---|
| 5711600002 | 4 | M5 | 3.5 | 18 | 17.5 | 9 | 8 | 10 | ✓ |
| 5711600003 | 4 | 1/8 | 5.5 | 18 | 18 | 9 | 13 | 10 | ✓ |
| 5711600004 | 4 | 1/4 | 7 | 18 | 18 | 9 | 16 | 10 | ✓ |
| 5711600005 | 5 | M5 | 3.5 | 20 | 20 | 11 | 11 | 12.5 | ✓ |
| 5711600006 | 5 | 1/8 | 5.5 | 20 | 20 | 11 | 13 | 12.5 | ✓ |
| 5711600007 | 6 | M5 | 3.5 | 21 | 20 | 11 | 11 | 12.5 | ✓ |
| 5711600008 | 6 | 1/8 | 5.5 | 21 | 20 | 11 | 13 | 12.5 | ✓ |
| 5711600009 | 6 | 1/4 | 7 | 21 | 21.5 | 11 | 16 | 12.5 | ✓ |
| 5711600030 | 6 | 3/8 | 7 | 21 | 21.5 | 11 | 16 | 12.5 | ✓ |
| 5711600010 | 8 | 1/8 | 5.5 | 22.5 | 21 | 12 | 13 | 14.5 | ✓ |
| 5711600011 | 8 | 1/4 | 7 | 22.5 | 21.5 | 12 | 16 | 14.5 | ✓ |
| 5711600012 | 8 | 3/8 | 8 | 22.5 | 23.5 | 12 | 20 | 14.5 | ✓ |
| 5711600013 | 8 | 1/2 | 9.5 | 22.5 | 25 | 12 | 25 | 14.5 | ✓ |
| 5711600014 | 10 | 1/4 | 7 | 26.5 | 25.5 | 14 | 16 | 17.5 | ✓ |
| 5711600015 | 10 | 3/8 | 8 | 26.5 | 25 | 14 | 20 | 17.5 | ✓ |
| 5711600016 | 10 | 1/2 | 9.5 | 26.5 | 26.5 | 14 | 25 | 17.5 | ✓ |
| 5711600025 | 12 | 1/4 | 8 | 31.5 | 27.5 | 16 | 20 | 21.5 | ✓ |
| 5711600017 | 12 | 3/8 | 8 | 31.5 | 27 | 16 | 20 | 21.5 | ✓ |
| 5711600018 | 12 | 1/2 | 9.5 | 31.5 | 28.5 | 16 | 25 | 21.5 | ✓ |
| 5711600019 | 14 | 3/8 | 8 | 31.5 | 27.5 | 16 | 20 | 21.5 | ✓ |
| 5711600020 | 14 | 1/2 | 9.5 | 31.5 | 29 | 16 | 25 | 21.5 | ✓ |
| 5711600026 | 4 | M6x1 | 3.6 | 17.5 | 18 | 9 | 8 | 10 | ✓ |
| 5711600027 | 4 | M8x1 | 5.4 | 17.5 | 18 | 9 | 12 | 10 | ✓ |
| 5711600028 | 6 | M10x1 | 5.4 | 21 | 21.5 | 11 | 13 | 12 | ✓ |
| 5711600021 | 6 | M12x1 | 7.5 | 20 | 22 | 11 | 16 | 12.5 | ✓ |
| 5711600022 | 6 | M12x1.25 | 7.5 | 20 | 22 | 11 | 16 | 12.5 | ✓ |
| 5711600023 | 6 | M12x1.5 | 7.5 | 20 | 22 | 11 | 16 | 12.5 | ✓ |
| 5711600024 | 8 | M12x1.5 | 7.5 | 22.5 | 22 | 12 | 16 | 14.5 | ✓ |
