Описание
| Код за поръчка: | Група: | Присъед. размер: | Дебит: | Наличност: |
|---|---|---|---|---|
| 040102000 | FRL 1 | 1/8 | 2600 NL/min | ✓ |
| 040103000 | FRL 1 | 1/4 | 2600 NL/min | ✓ |
| 040104000 | FRL 1 | 3/8 | 2600 NL/min | ✓ |
| 040203000 | FRL 2 | 1/4 | 5600 NL/min | ✓ |
| 040204000 | FRL 2 | 3/8 | 5600 NL/min | ✓ |
| 040205000 | FRL 2 | 1/2 | 5600 NL/min | ✓ |
| 040305000 | FRL 3 | 1/2 | 8200 NL/min | ✓ |
| 040307000 | FRL 3 | 3/4 | 8200 NL/min | ✓ |
| 040309000 | FRL 3 | 1“ | 8200 NL/min | ✓ |

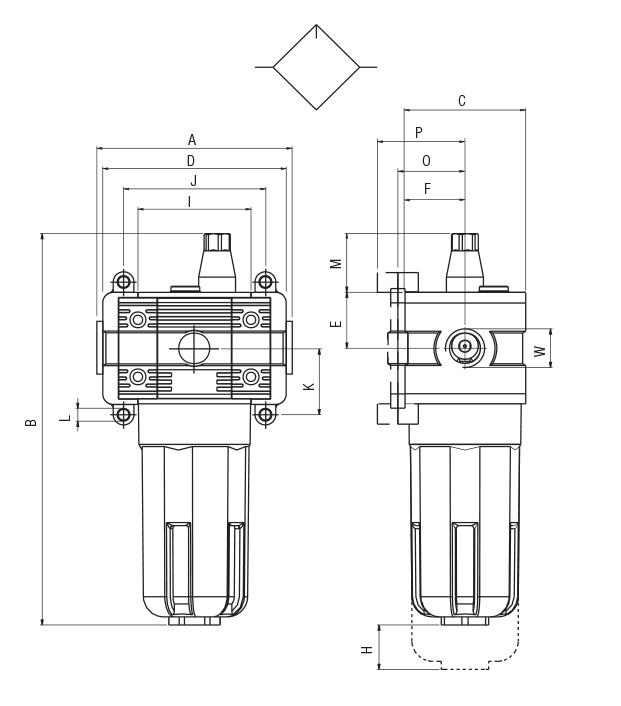

| По схема: | FRL 1 | FRL 2 | FRL 3 |
|---|---|---|---|
| A | 75.5 | 89 | 106/106/111 |
| B | 162 | 195 | 214 |
| C | 45 | 59 | 70 |
| D | 72 | 89 | 100 |
| W | 1/8 – 1/4 – 3/8 | 1/4 – 3/8 – 1/2 | 1/2 – 3/4 – 1“ |
| E | 21 | 27.5 | 32.5 |
| F | 22.5 | 28.5 | 35 |
| H | 39 | 48 | 50 |
| I | 43 | 55 | 65 |
| J | 48.5 | 69 | 79 |
| K | 26 | 32.5 | 38 |
| L | M4 | M5 | M6 |
| M | 29 | 29 | 29 |
| O | 26 | 32 | 38.5 |
| P | 32.5 | 38.5 | 45 |
