Описание

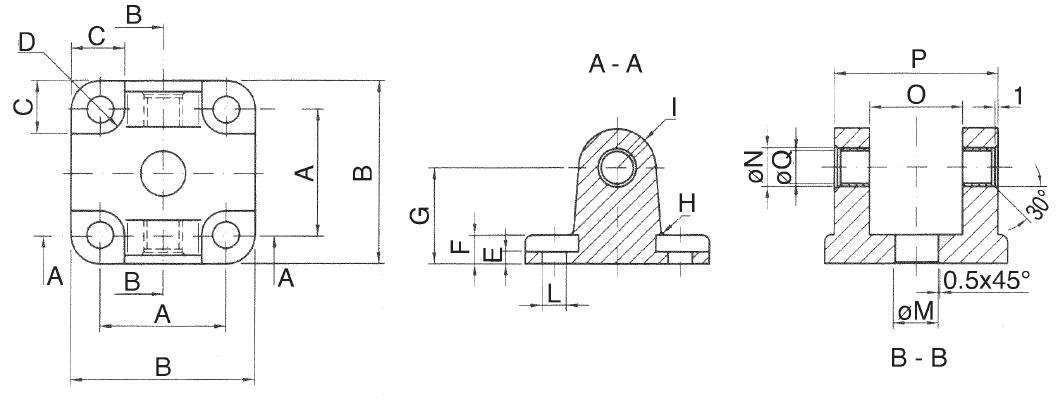

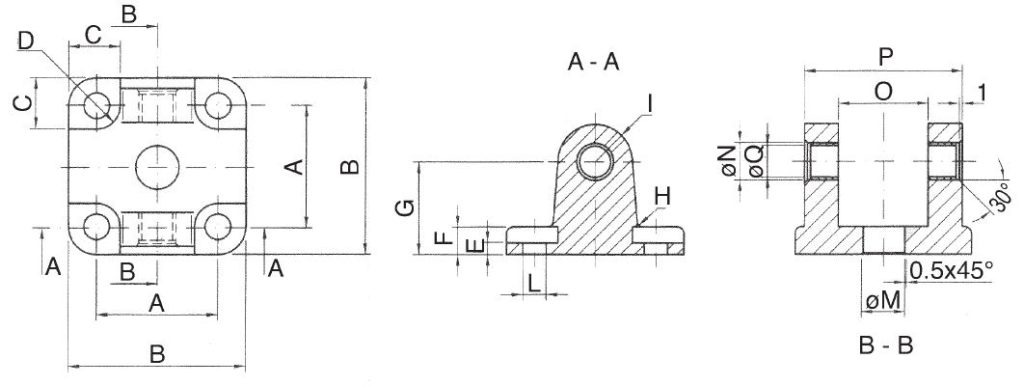

| Код за поръчка | Ø | A | B | C | D | E | F | G | Наличност: |
|---|---|---|---|---|---|---|---|---|---|
| QCF32 | 32 | 32 | 48 | 13.5 | 5.5 | 5.5 | 9 | 22 | ✓ |
| QCF40 | 40 | 42 | 58 | 13.5 | 5.5 | 5.5 | 9 | 25 | ✓ |
| QCF50 | 50 | 50 | 66 | 15.5 | 7.5 | 6.5 | 11 | 27 | ✓ |
| QCF63 | 63 | 62 | 83 | 18 | 7.5 | 6.5 | 11 | 32 | ✓ |
| QCF80 | 80 | 82 | 102 | 19 | 9 | 10 | 13 | 36 | |
| QCF100 | 100 | 103 | 123 | 19 | 9 | 10 | 15 | 41 |
| Ø | H | I | L | M | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|
| 32 | 2.5 | 10 | 6.6 | 14 | 12 | 26 | 45 | 10 |
| 40 | 2.5 | 12.5 | 6.6 | 14 | 14 | 28 | 52 | 12 |
| 50 | 2.5 | 12.5 | 9 | 18 | 14 | 32 | 60 | 12 |
| 63 | 4 | 15 | 11 | 18 | 18 | 40 | 70 | 16 |
| 80 | 4 | 15 | 11 | 23 | 18 | 50 | 90 | 16 |
| 100 | 4 | 20 | 11 | 28 | 23 | 60 | 110 | 20 |
