Описание

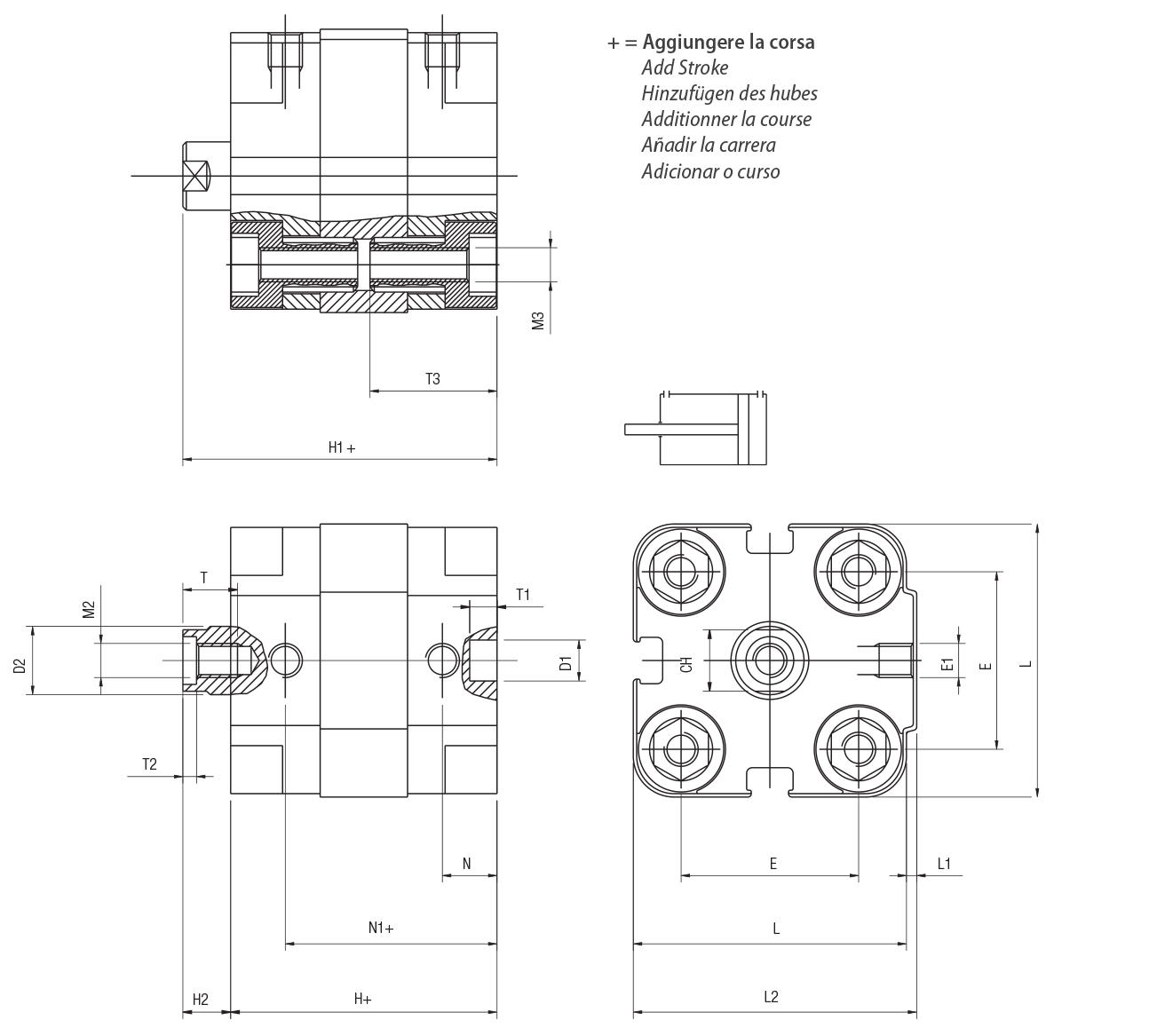

| Ø | KK | A | T | T1 | T2 | D1 | L | E1 | M3 | T3 | M2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | M6 | 16 | 6 | 4 | 1.5 | 6 | 29 | M5 | M4 | 16 | M3 |
| 16 | M8 | 20 | 8 | 4 | 2 | 6 | 29 | M5 | M4 | 16 | M4 |
| 20 | M10x1.25 | 22 | 8 | 4 | 2 | 6 | 36 | M5 | M5 | 18.5 | M5 |
| 25 | M10x1.25 | 22 | 8 | 4 | 2 | 8 | 40 | M5 | M5 | 18.5 | M5 |
| Ø | H | H2 | D2 | N | N1 | L2 | E | L1 | H1 | CH |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 35 | 7.5 | 6 | 6.5 | 28.5 | 30 | 18 | 1 | 42.5 | 5 |
| 16 | 35 | 8.5 | 8 | 6.5 | 28.5 | 30 | 18 | 1 | 43.5 | 7 |
| 20 | 39 | 7 | 10 | 8 | 31 | 37.5 | 22 | 1.5 | 46 | 9 |
| 25 | 39 | 7 | 10 | 8 | 31 | 41.5 | 26 | 1.5 | 46 | 9 |
| Код за поръчка: | Ø | Ход на бутален прът: | Наличност: |
|---|---|---|---|
| QF12x10 | 12 | 10 | |
| QF12x15 | 12 | 15 | |
| QF12x20 | 12 | 20 | |
| QF12x25 | 12 | 25 | |
| QF12x30 | 12 | 30 | |
| QF12x40 | 12 | 40 | |
| QF16x05 | 16 | 5 | |
| QF16x10 | 16 | 10 | ✓ |
| QF16x15 | 16 | 15 | |
| QF16x20 | 16 | 20 | ✓ |
| QF16x25 | 16 | 25 | |
| QF16x30 | 16 | 30 | |
| QF16x40 | 16 | 40 | |
| QF20x05 | 20 | 5 | |
| QF20x10 | 20 | 10 | |
| QF20x15 | 20 | 15 | ✓ |
| QF20x20 | 20 | 20 | |
| QF20x25 | 20 | 25 | |
| QF20x30 | 20 | 30 | |
| QF20x40 | 20 | 40 | |
| QF20x50 | 20 | 50 | |
| QF25x05 | 25 | 5 | |
| QF25x10 | 25 | 10 | |
| QF25x15 | 25 | 15 | |
| QF25x20 | 25 | 20 | |
| QF25x25 | 25 | 25 | ✓ |
| QF25x30 | 25 | 30 | |
| QF25x40 | 25 | 40 | |
| QF25x50 | 25 | 50 |
