QF – двойно действащ цилиндър къс ход с магнит – Compact /32-100/

QF – двойно действащ цилиндър къс ход с магнит – Compact /32-100/

Loading...

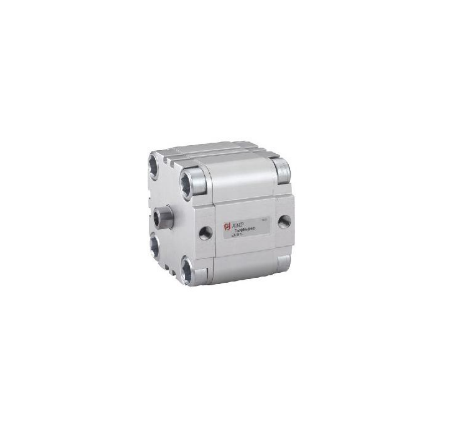

QF - двойно действащ цилиндър къс ход с магнит - Compact /32-100/

  • Налягане: 1 – 10 bar.
  • Температура: 0 °C до +80 °C
Категории: , ,
Loading...

Описание

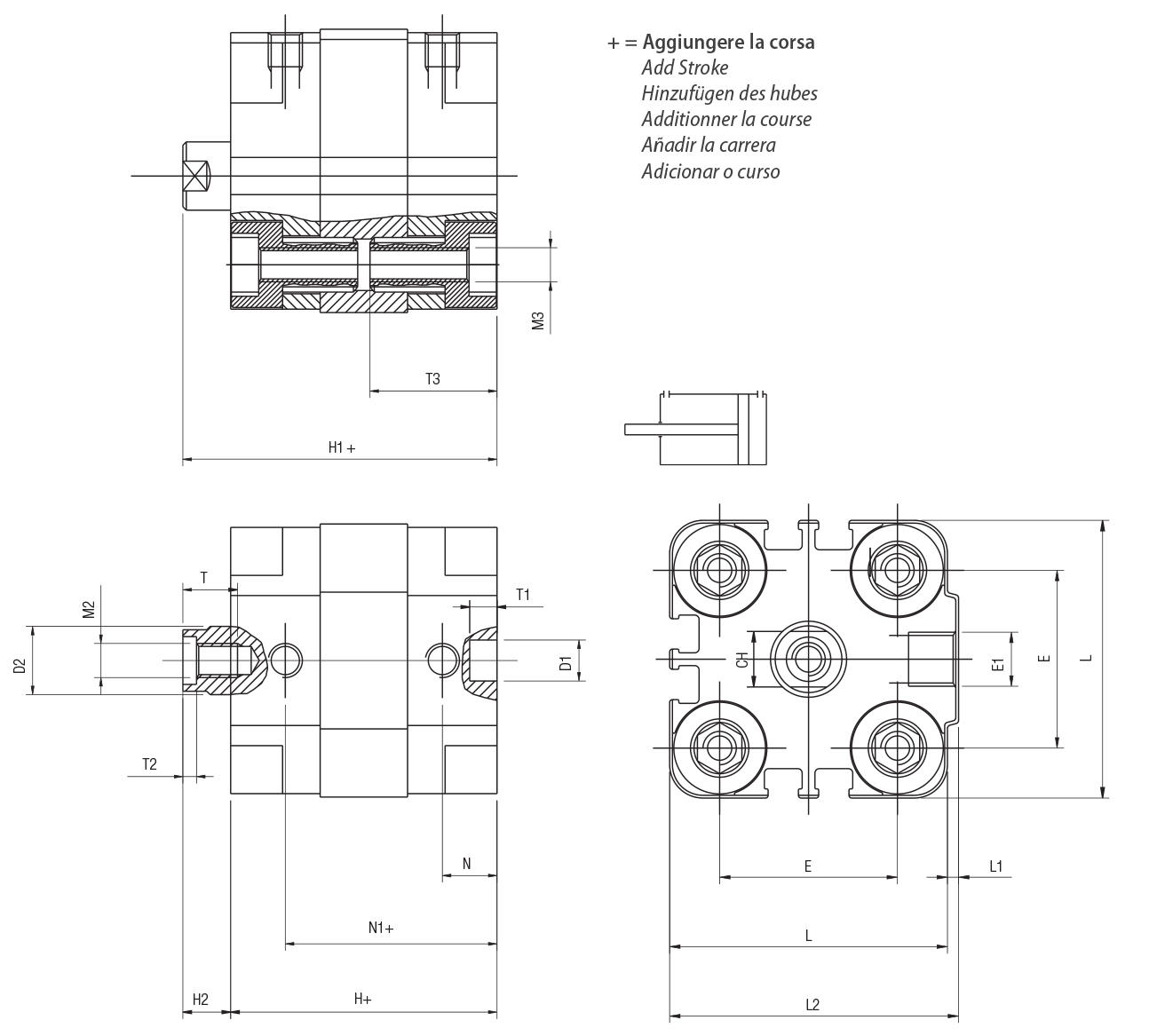

Ø KK A T T1 T2 D1 L E1 M3 T3 M2
32 M10x1.25 22 10 4 2.8 6 50 G1/8 M6 21.5 M6
40 M10x1.25 22 10 4 2.8 6 60 G1/8 M6 21.5 M6
50 M12x1.25 24 12 4 3.5 6 68 G1/8 M8 23.5 M8
63 M12x1.25 24 12 4 3.5 8 87 G1/8 M10 28.5 M8
80 M16x1.5 32 16 4 4.5 8 107 G1/8 M10 28.5 M10
100 M20x1.5 40 20 4 6 8 128 G1/4 M10 28.5 M12

Ø H H2 D2 N N1 L2 E L1 H1 CH
32 42 7 12 6.5 35.5 52 32 2 49 10
40 45.5 8.5 12 7.5 38 62.5 42 2.5 54 10
50 45.5 10 16 7.5 38 71 50 3 55.5 13
63 51 10.5 16 7.5 43.5 91 62 4 61.5 13
80 62 12 20 9.5 52.5 111 82 4 75 17
100 68 15.5 25 10.5 57.5 133 103 5 83.5 22

Код за поръчка: Ø Ход на бутален прът: Наличност:
QF32x05 32 5
QF32x10 32 10
QF32x15 32 15 ✓
QF32x20 32 20
QF32x25 32 25
QF32x30 32 30
QF32x40 32 40
QF32x50 32 50
QF32x60 32 60
QF32x80 32 80
QF32x100 32 100
QF32x125 32 125
QF32x150 32 150
QF40x05 40 5
QF40x10 40 10
QF40x15 40 15
QF40x20 40 20
QF40x25 40 25
QF40x30 40 30
QF40x40 40 40 ✓
QF40x50 40 50
QF40x60 40 60
QF40x80 40 80
QF40x100 40 100
QF40x125 40 125
QF40x150 40 150
QF50x05 50 5 ✓
QF50x10 50 10
QF50x15 50 15 ✓
QF50x20 50 20
QF50x25 50 25
QF50x30 50 30
QF50x40 50 40
QF50x50 50 50 ✓
QF50x60 50 60
QF50x80 50 80
QF50x100 50 100
QF50x125 50 125
QF50x150 50 150 ✓
QF50x200 50 200
QF63x05 63 5
QF63x10 63 10
QF63x15 63 15
QF63x20 63 20
QF63x25 63 25
QF63x30 63 30
QF63x40 63 40
QF63x50 63 50
QF63x60 63 60
QF63x80 63 80
QF63x100 63 100
QF63x125 63 125
QF63x150 63 150
QF63x200 63 200
QF80x05 80 5
QF80x10 80 10 ✓
QF80x15 80 15
QF80x20 80 20
QF80x25 80 25
QF80x30 80 30 ✓
QF80x40 80 40
QF80x50 80 50
QF80x60 80 60
QF80x80 80 80
QF80x100 80 100
QF80x125 80 125
QF80x150 80 150
QF80x200 80 200
QF100x05 100 5
QF100x10 100 10
QF100x15 100 15
QF100x20 100 20
QF100x25 100 25
QF100x30 100 30
QF100x40 100 40
QF100x50 100 50
QF100x60 100 60
QF100x80 100 80
QF100x100 100 100
QF100x125 100 125
QF100x150 100 150
QF100x200 100 200
