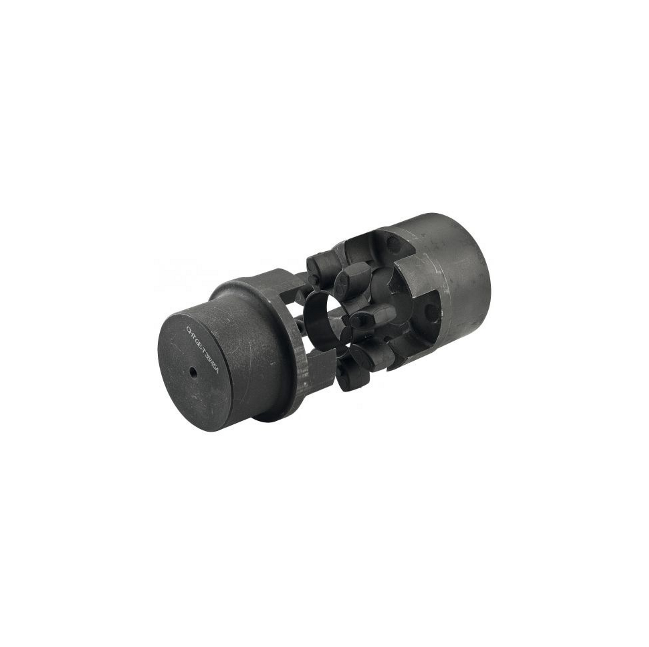

Валов съединител – главина A и B

Описание

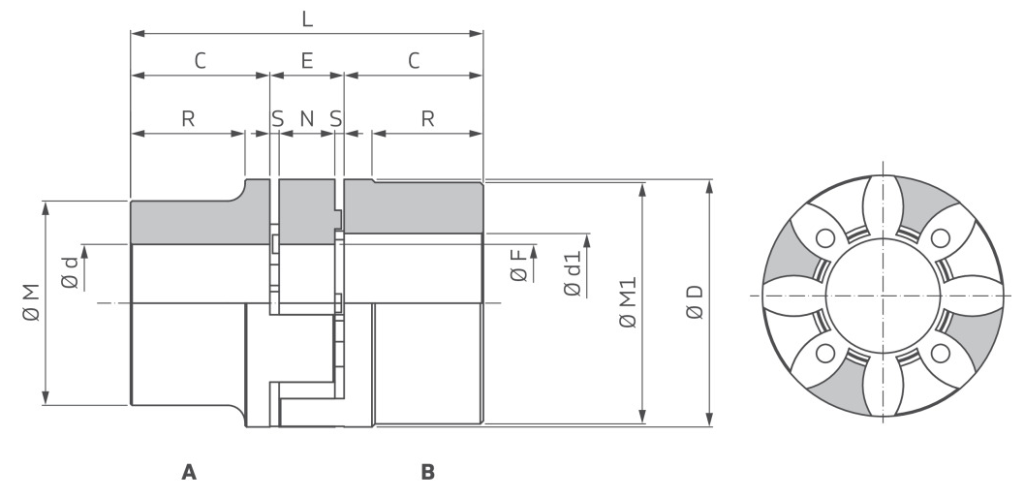

d-d1	C	Ø D	E	Ø F	Ø M	Ø M1	N	R	S	L	Наличност:
19-24	25	40	16	18	30	40	12	19	2	66	✓
24-32	30	55	18	27	40	55	14	24	2	78	✓
28-38	35	65	20	30	48	65	15	27.5	2.5	90	✓
38-45	45	80	24	38	66	78	18	36.5	3	114	✓
42-55	50	95	26	46	75	94	20	40	3	126	✓
48-60	56	105	28	51	85	104	21	45	3.5	140
55-70	65	120	30	60	98	118	22	52	4	160
65-75	75	135	35	68	115	134	26	61	4.5	185
75-90	85	160	40	80	135	158	30	69	5	210
90-100	100	200	45	100	160	180	34	81	5.5	245
