Описание

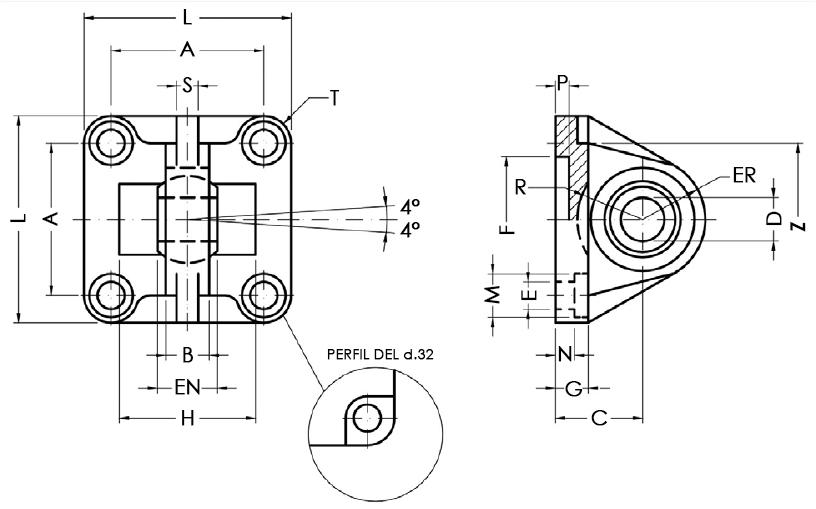

| Код за поръчка | Ø | A | B | C | D | EN | ER | F | G | E | Наличност: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VCS032 | 32 | 32.5 | 10.5 | 22 | 10 | 14 | 16 | 30 | 9 | 6.6 | ✓ |
| VCS040 | 40 | 38 | 12 | 25 | 12 | 16 | 19 | 35 | 9 | 6.6 | ✓ |
| VCS050 | 50 | 46.5 | 15 | 27 | 16 | 21 | 21 | 40 | 11 | 9 | ✓ |
| VCS063 | 63 | 56.5 | 15 | 32 | 16 | 21 | 24 | 45 | 11 | 9 | ✓ |
| VCS080 | 80 | 72 | 18 | 36 | 20 | 25 | 28.5 | 45 | 14 | 11 | ✓ |
| VCS100 | 100 | 89 | 18 | 41 | 20 | 25 | 30 | 55 | 14 | 11 | ✓ |
| VCS125 | 125 | 110 | 25 | 50 | 30 | 37 | 40 | 60 | 20 | 13.5 | |
| VCS160 | 160 | 140 | 28 | 55 | 35 | 43 | 45 | 65 | 20 | 18 | |
| VCS200 | 200 | 175 | 28 | 60 | 35 | 43 | 48 | 75 | 25 | 18 |
| Ø | L | M | N | P | H | R | S | Z | T |
|---|---|---|---|---|---|---|---|---|---|
| 32 | 45 | 11 | 5.5 | 5 | – | – | 4 | 32.5 | 6.25 |
| 40 | 52 | 11 | 5.5 | 5 | – | – | 6 | 39 | 7 |
| 50 | 65 | 15 | 6.5 | 5 | 51 | 18 | 8 | 47 | 9.25 |
| 63 | 75 | 15 | 6.5 | 5 | – | – | 8 | 52 | 9.25 |
| 80 | 95 | 18 | 10 | 5 | 72 | 24 | 10 | 67 | 11.5 |
| 100 | 115 | 18 | 10 | 8 | – | – | 10 | 77 | 13 |
| 125 | 140 | 20 | 10 | 7 | – | – | 13 | 98 | 15 |
| 160 | 180 | 26 | 10 | 7 | – | – | 14 | 130 | 20 |
| 200 | 220 | 26 | 11 | 7 | – | – | 14 | 155 | 22.5 |
