Описание

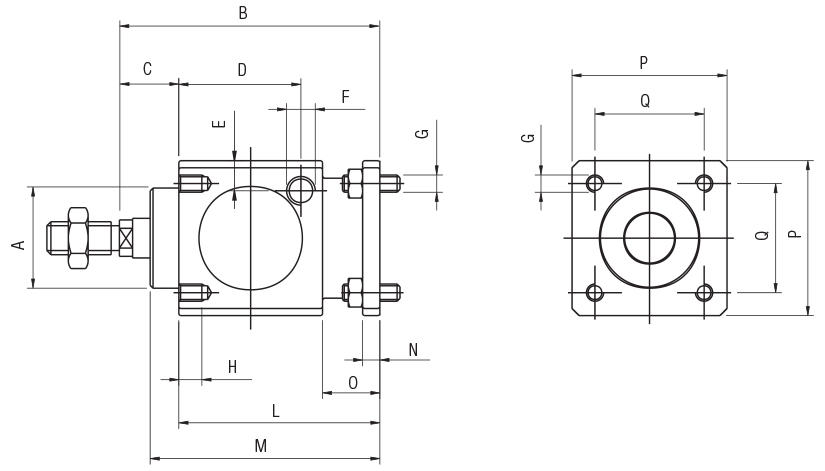

| Код за поръчка | Ø | A | B | C | D | E | F | Наличност: |
|---|---|---|---|---|---|---|---|---|
| VRL32 | 32 | 30 | 86 | 26 | 33.25 | 9 | 1/8″G | |
| VRL40 | 40 | 34.5 | 100 | 30 | 42.5 | 9 | 1/8″G | |
| VRL50 | 50 | 40 | 127 | 37 | 58 | 12.5 | 1/8″G | |
| VRL63 | 63 | 45 | 127 | 37 | 59 | 17.5 | 1/8″G | ✓ |
| VRL80 | 80 | 45 | 156 | 46 | 69 | 17.5 | 1/4″G | |
| VRL100 | 100 | 55 | 161 | 51 | 69 | 20 | 1/4″G | |
| VRL125 | 125 | 60 | 205 | 65 | 84.5 | 19 | 1/4″G |
| Ø | G | H | L | M | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|
| 32 | M6 | 8 | 60 | 67.5 | 6 | 20 | 47 | 32.5 |
| 40 | M6 | 8 | 70 | 80 | 6 | 20 | 54 | 38 |
| 50 | M8 | 12 | 90 | 100 | 8 | 24 | 65 | 46.5 |
| 63 | M8 | 12 | 90 | 100 | 8 | 24 | 75 | 56.5 |
| 80 | M10 | 16 | 110 | 120 | 12 | 32 | 95 | 72 |
| 100 | M10 | 16 | 110 | 120 | 12 | 32 | 114 | 89 |
| 125 | M12 | 20 | 140 | 156 | 20 | 45 | 138 | 110 |
