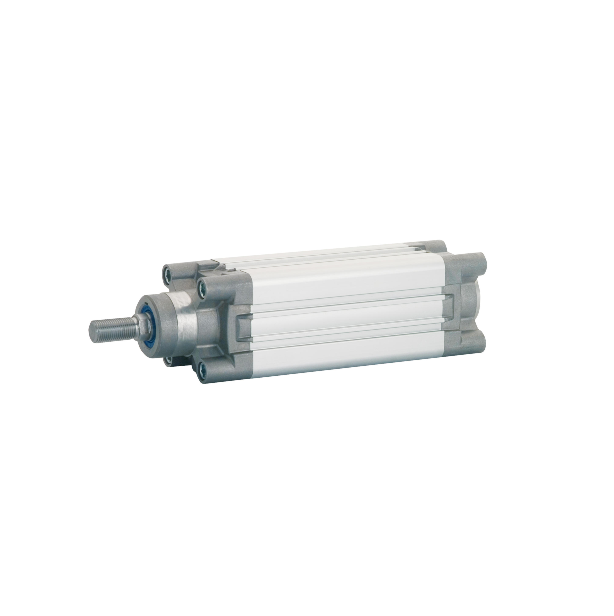

XH – пневм. цилиндър дв. действие с магнит и демпфер

XH – пневм. цилиндър дв. действие с магнит и демпфер

Loading...

  • Налягане: 1 – 10 bar.
  • Температурен диапазон: 0 – 80°C
Категории: ,
Loading...

Описание

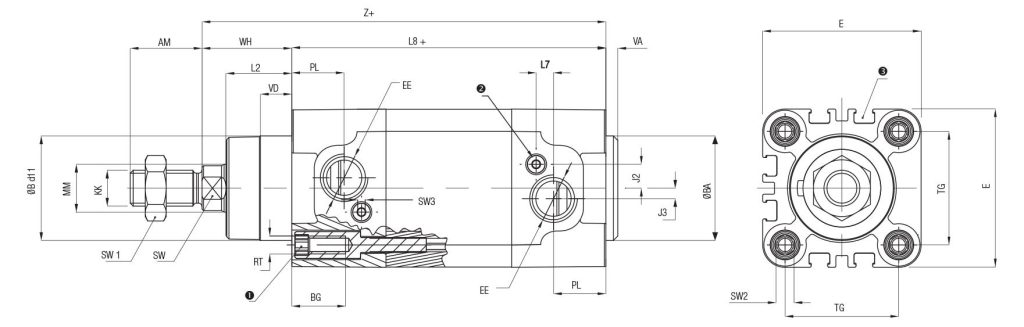

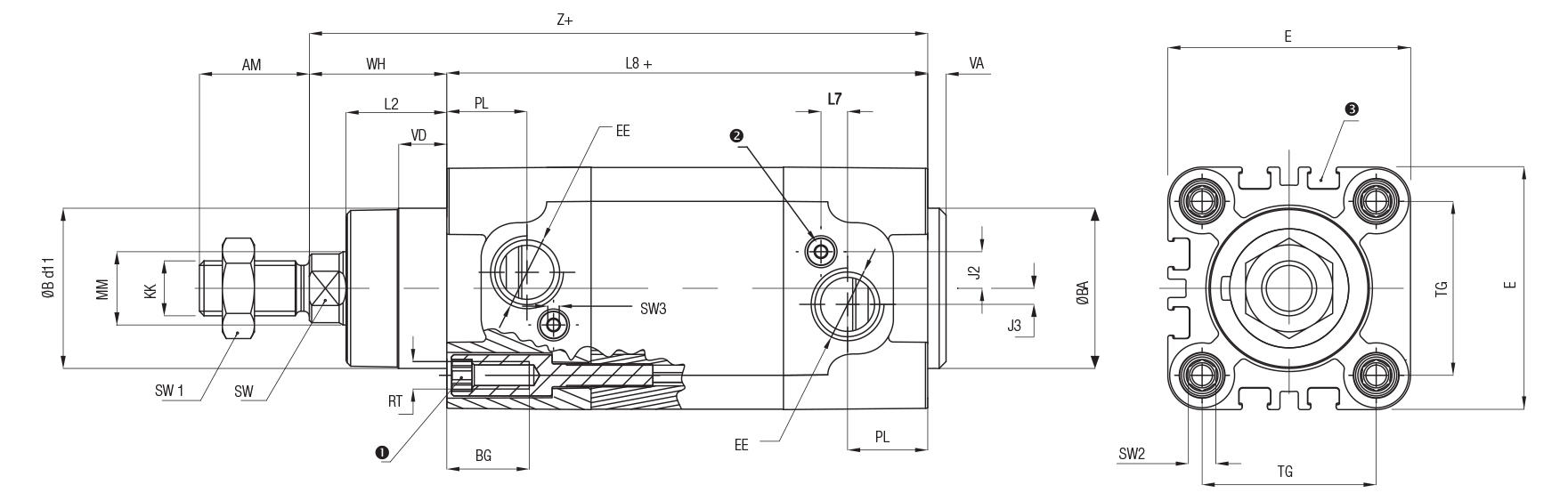

Ø ØBd11 VD VA L2 WH ØMM SW KK AM SW1
32 30 10 4 20 26 12 10 M10x1.25 22 17
40 35 10.5 4 22 30 16 13 M12x1.25 24 19
50 40 11.5 4 28 37 20 17 M16x1.5 32 22
63 45 15 4 29 37 20 17 M16x1.5 32 22
80 45 15.7 4 35 46 25 22 M20x1.5 40 30
100 55 19.2 4 38 51.5 25 22 M20x1.5 40 30
125 60 20 6 50 65 32 27 M27x2 54 41

Ø Z L8 BG RT SW2 E TG EE PL J3 J2 L7 SW3
32 120 94 18 M6 6 46 32.5 G1/8 18 4 6.5 2 2.5
40 135 105 18 M6 6 54 38 G1/4 17.5 3.5 8 5.8 2.5
50 143 106 20 M8 8 64 46.5 G1/4 20.5 7 10 2 4
63 158 121 20 M8 8 74 56.5 G3/8 22 11 8.5 4 4
80 174 128 19 M10 6 94 72 G3/8 22 11 8.5 4 4
100 189.5 138 19 M10 6 111 89 G1/2 26 9 12.5 5 4
125 225 160 21 M12 8 135 110 G1/2 30 9 12.5 2.5 4

Код за поръчка: Ø Ход на бутален прът: Наличност:
XH32x25 32 25
XH32x40 32 40
XH32x50 32 50 ✓
XH32x75 32 75
XH32x80 32 80
XH32x100 32 100 ✓
XH32x125 32 125 ✓
XH32x150 32 150
XH32x160 32 160
XH32x200 32 200 ✓
XH32x250 32 250 ✓
XH32x300 32 300
XH32x320 32 320
XH32x350 32 350 ✓
XH32x400 32 400 ✓
XH32x450 32 450
XH32x500 32 500 ✓
XH32x600 32 600
XH32x700 32 700
XH32x800 32 800
XH32x900 32 900
XH32x1000 32 1000
XH40x25 40 25 ✓
XH40x40 40 40
XH40x50 40 50
XH40x75 40 75
XH40x80 40 80 ✓
XH40x100 40 100 ✓
XH40x125 40 125
XH40x150 40 150 ✓
XH40x160 40 160
XH40x200 40 200 ✓
XH40x250 40 250 ✓
XH40x300 40 300
XH40x320 40 320
XH40x350 40 350 ✓
XH40x400 40 400 ✓
XH40x450 40 450
XH40x500 40 500 ✓
XH40x600 40 600
XH40x700 40 700
XH40x800 40 800 ✓
XH40x880 40 880 ✓
XH40x900 40 900
XH40x1000 40 1000
XH50x25 50 25 ✓
XH50x40 50 40
XH50x50 50 50 ✓
XH50x75 50 75 ✓
XH50x80 50 80 ✓
XH50x100 50 100 ✓
XH50x125 50 125 ✓
XH50x150 50 150 ✓
XH50x160 50 160 ✓
XH50x200 50 200 ✓
XH50x250 50 250 ✓
XH50x300 50 300
XH50x320 50 320 ✓
XH50x350 50 350 ✓
XH50x400 50 400 ✓
XH50x450 50 450 ✓
XH50x500 50 500 ✓
XH50x600 50 600 ✓
XH50x650 50 650 ✓
XH50x700 50 700
XH50x800 50 800
XH50x900 50 900
XH50x1000 50 1000 ✓
XH50x1200 50 1200 ✓
XH63x25 63 25 ✓
XH63x35 63 35 ✓
XH63x40 63 40
XH63x50 63 50 ✓
XH63x65 63 65 ✓
XH63x75 63 75
XH63x80 63 80 ✓
XH63x100 63 100 ✓
XH63x125 63 125 ✓
XH63x150 63 150 ✓
XH63x160 63 160 ✓
XH63x200 63 200 ✓
XH63x250 63 250
XH63x300 63 300 ✓
XH63x320 63 320 ✓
XH63x350 63 350 ✓
XH63x400 63 400 ✓
XH63x450 63 450 ✓
XH63x500 63 500 ✓
XH63x600 63 600 ✓
XH63x650 63 650 ✓
XH63x700 63 700
XH63x800 63 800 ✓
XH63x900 63 900
XH63x1000 63 1000
XH80x25 80 25
XH80x40 80 40
XH80x50 80 50 ✓
XH80x75 80 75
XH80x80 80 80 ✓
XH80x100 80 100 ✓
XH80x125 80 125 ✓
XH80x150 80 150
XH80x160 80 160 ✓
XH80x200 80 200 ✓
XH80x250 80 250 ✓
XH80x300 80 300 ✓
XH80x320 80 320 ✓
XH80x360 80 360 ✓
XH80x400 80 400 ✓
XH80x450 80 450
XH80x500 80 500 ✓
XH80x600 80 600 ✓
XH80x650 80 650 ✓
XH80x700 80 700 ✓
XH80x800 80 800 ✓
XH80x900 80 900 ✓
XH80x1000 80 1000
XH80x1700 80 1700 ✓
XH100x25 100 25
XH100x40 100 40
XH100x50 100 50
XH100x75 100 75
XH100x80 100 80 ✓
XH100x100 100 100 ✓
XH100x125 100 125 ✓
XH100x150 100 150 ✓
XH100x160 100 160 ✓
XH100x200 100 200
XH100x250 100 250
XH100x300 100 300
XH100x320 100 320 ✓
XH100x350 100 350 ✓
XH100x400 100 400
XH100x450 100 450
XH100x500 100 500
XH100x600 100 600 ✓
XH100x700 100 700
XH100x800 100 800
XH100x900 100 900
XH100x1000 100 1000
XH125x25 125 25
XH125x40 125 40
XH125x50 125 50
XH125x75 125 75
XH125x80 125 80
XH125x100 125 100
XH125x125 125 125
XH125x150 125 150
XH125x160 125 160 ✓
XH125x200 125 200 ✓
XH125x250 125 250
XH125x300 125 300
XH125x320 125 320
XH125x350 125 350
XH125x400 125 400 ✓
XH125x450 125 450
XH125x500 125 500 ✓
XH125x600 125 600 ✓
XH125x700 125 700
XH125x800 125 800
XH125x900 125 900
XH125x1000 125 1000
